CityView 35mm Awning Window

The CityView 35mm Awning Window is the ideal solution for high rise apartments, shopping centres, offices and other commercial applications.

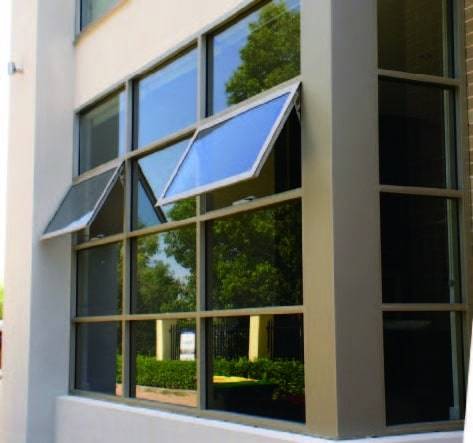

Cityview - Harbourview - Klassicview Brochures_Page_13_Image_0001 (2)

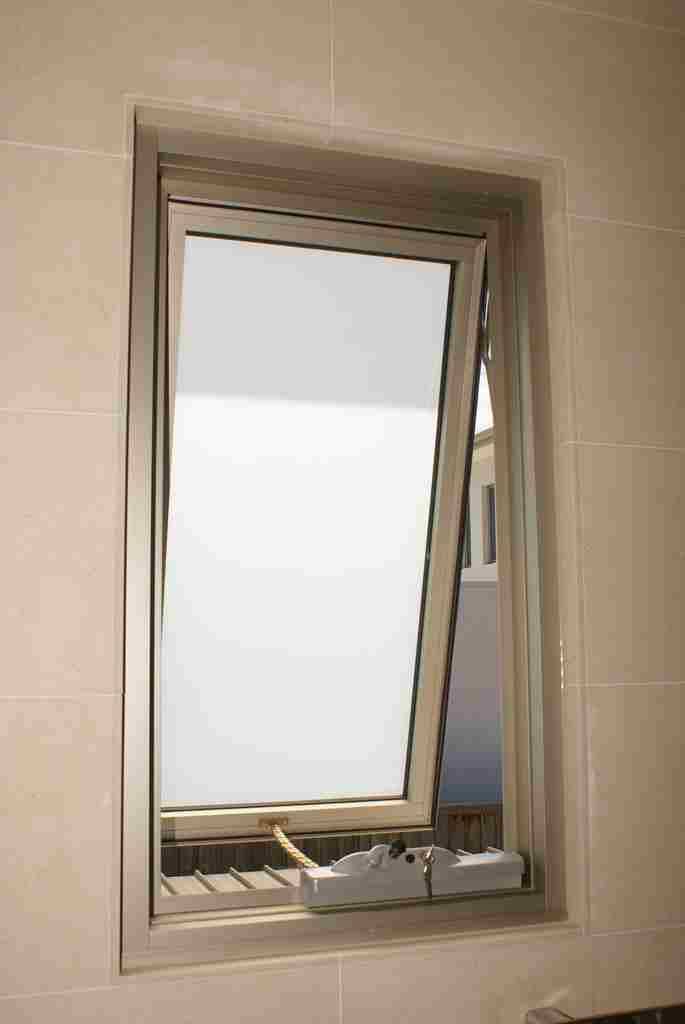

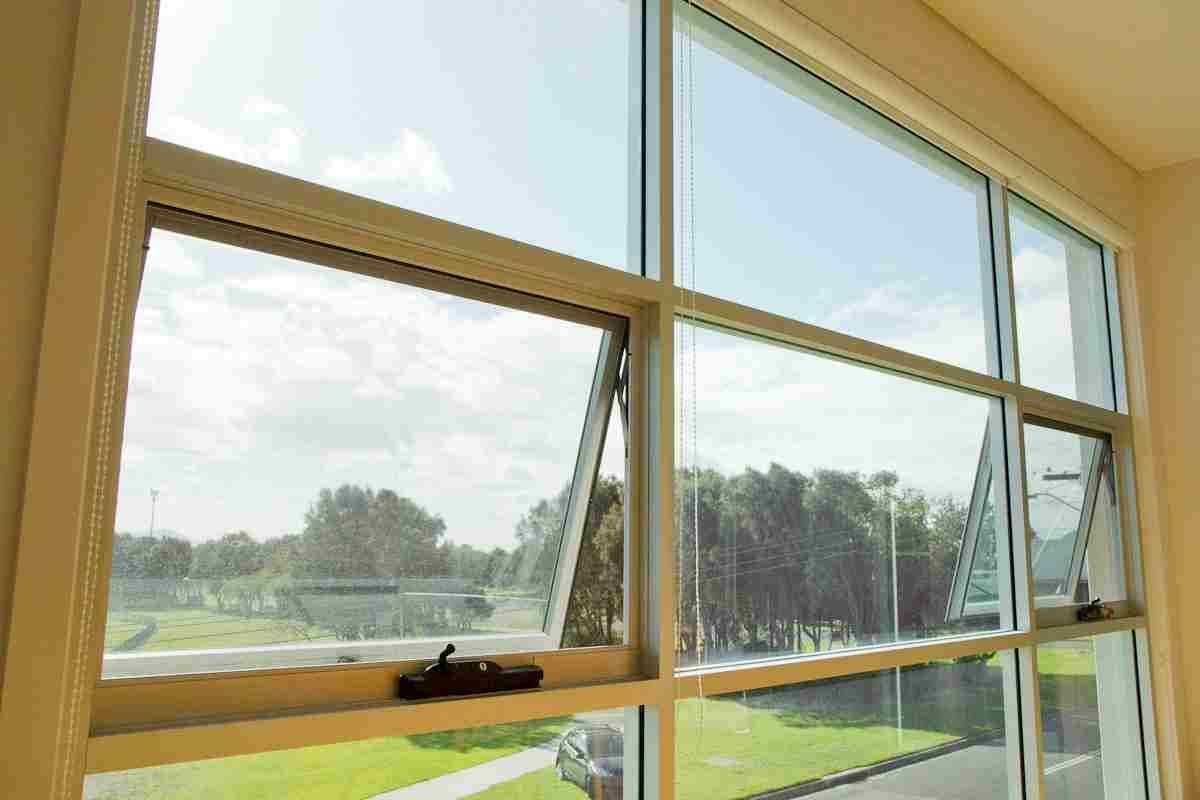

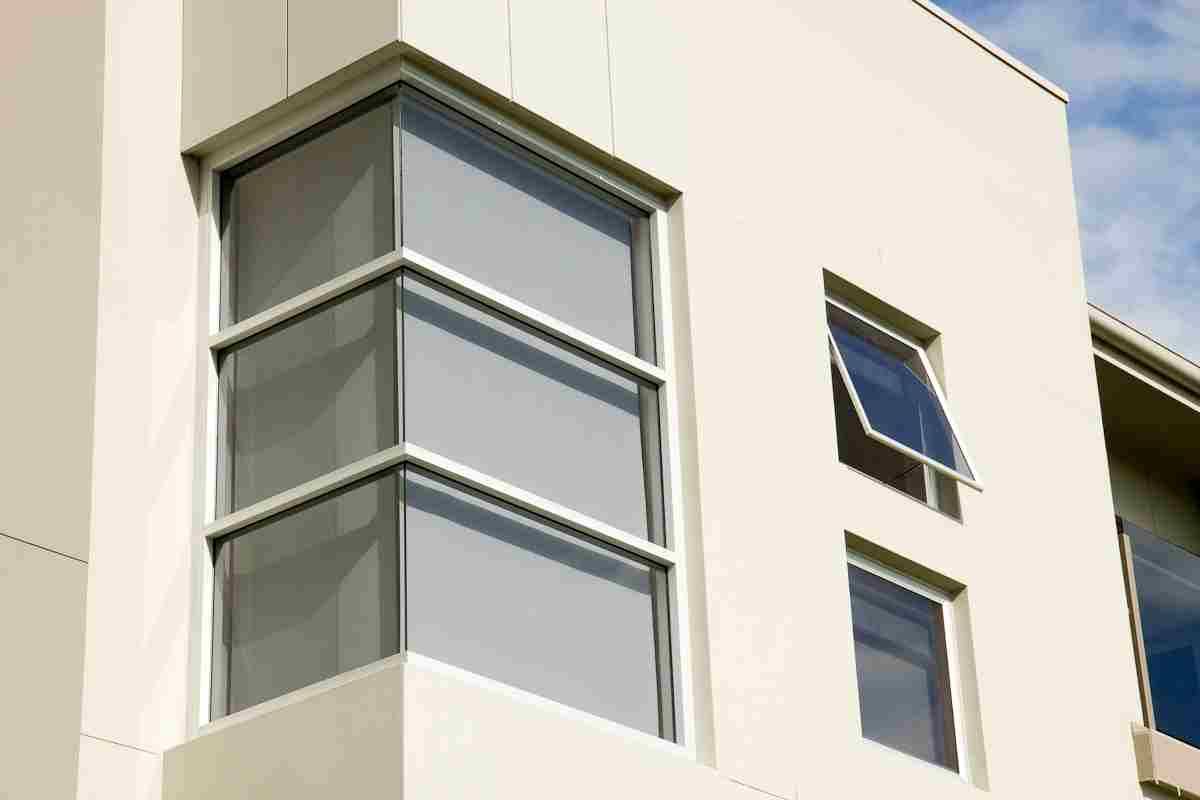

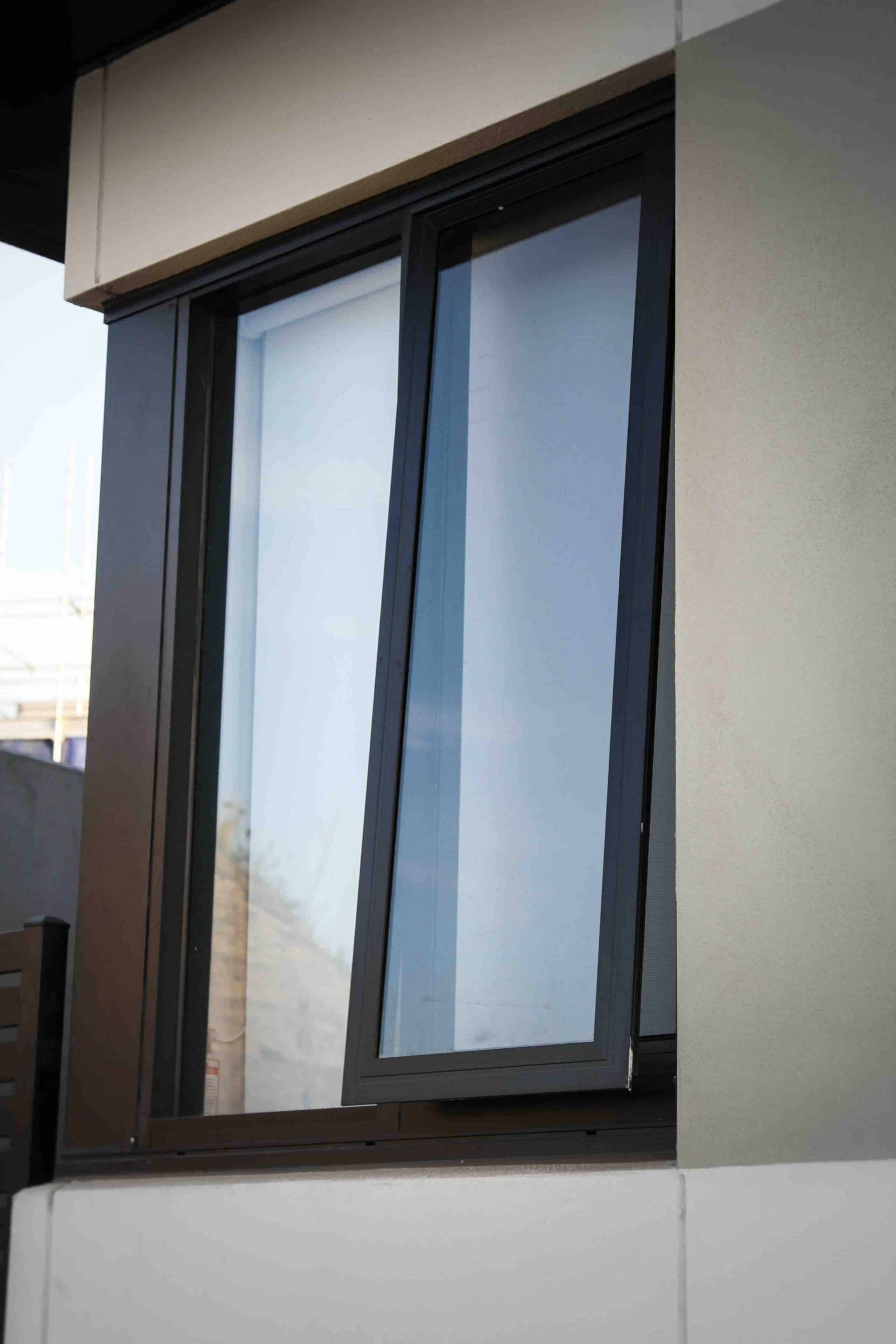

About CityView 35mm Awning Window

It accepts a glass thickness of 6mm to 24mm and is compatible with Darley’s other front and centre glazed commercial framing systems.

This awning window was designed with compression seals around the perimeter providing protection against strong weather, lowering noise pollution and offering comfort all year round.

Locking options for the CityView awning window includes a cam lock or a chainwinder, with a chain winder providing ease of operation without interfering with fly or security screens.

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Access Via Darley Portal

Download Product Flyer

Download CityView™ Brochure

Design Features

Accepts glass thickness from 6mm-24mm
Compatible with other Darley Aluminium Commercial and Residential Systems
Self-draining transom
Accepts a variety of awning sash options (refer to Awning Section)
Range of heavy duty mullion options for tall framing and high wind areas

Max sash height = 1800mm
Side Stays (13mm Stack):
- – 14kg Max for heights under 450mm
- – 20kg Max for heights 450 – 550mm
- – 24kg Max for heights 500 – 1200mm
- – 35kg max for heights 1200 – 1800mm

Top hook-hinge
- – 20kg Max for widths 400mm – 600mm
- – 45kg Max for widths 600mm and above
Tested and Approved by an independent NATA accredited laboratory

Specifications

System	Maximum weight per sash	Maximum Sash Height^	Maximum Sash Width^	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
35mm with Stay	Stays = 35kgs	1700mm	950mm	6mm to 24mm	AZT0127.08	300	0	2000
35mm Awning Hook Hinge	Hook = 45kg	1700mm	950mm	6mm to 24mm	AZT0490.20	500	1200	3000
^For taller or wider sash sizes, please contact technical support

Commercial Hardware

Find Out More

The CityView™ range consists of:

CityView™ 35mm Awning Window

Maximise the views and ventilation in your home with a CityView™ 35mm Awning Window

CityView™ High Performance Awning & Casement Window

The CityView™ High Performance Awning & Casement Window features extra strong aluminium frames for increased strength and performanceand to accommodate larger glass panels.

CityView™ Double Hung Window

The CityView double hung window is an ideal choice for shopping centres, offices, showrooms and commercial buildings

CityView™ Louvre Windows

Widely used in apartments and high-end residential developments, the CityView louvre window system allows you to adjust the amount of ventilation and sunlight to suit your comfort levels

CityView™ Architectural Sliding Door

If high performance, strength and functionality is what you are looking for in a commercial sliding door, then you can’t go past the CityView™ Architectural Sliding Door

CityView™ Awning & Casement Window

Requiring less effort to operate than a standard awning window, the CityView Truth Awning Casement window is a high performance window system with a unique functioning operator

CityView™ Sliding Stacking Patio Door

The CityView Sliding Stacking sliding door is the perfect choice if you are looking for a functional, cost effective sliding door that offers wide openings that connect indoor living areas to outdoor space such as patios, sundecks and courtyards

CityView™ Sliding Window

Look forward to unobstructed views, natural airflow and smooth lines & modern aesthetic with the CityView Sliding Window

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-006-01	“Cityview” Awning Window-Single Glazed	6Clr	1.5	3	28%	21%	6.9	0.53	0.52	0.25
DAR-006-02	“Cityview” Awning Window-Single Glazed	6Gry	2.5	2.5	39%	14%	6.9	0.39	0.26	0.25
DAR-006-03	“Cityview” Awning Window-Single Glazed	6TS21	3.5	2.5	52%	11%	6.4	0.23	0.12	0.25
DAR-006-04	“Cityview” Awning Window-Single Glazed	6.38CPNtl	3	3.5	47%	28%	5.8	0.35	0.35	0.25
DAR-006-05	“Cityview” Awning Window-Single Glazed	6.38CPGrn	3	3.5	47%	28%	5.8	0.35	0.42	0.25
DAR-006-06	“Cityview” Awning Window-Single Glazed	6.38CPGry	3	3.5	47%	27%	5.8	0.34	0.23	0.25
DAR-006-07	“Cityview” Awning Window-Single Glazed	6.38CPClr	2.5	4	40%	34%	5.7	0.45	0.49	0.25
DAR-006-08	“Cityview” Awning Window-Single Glazed	6.38ClrLam	1.5	3	30%	22%	6.8	0.51	0.52	0.25
DAR-006-09	“Cityview” Awning Window-Single Glazed	6AzTS21	3.5	2.5	52%	12%	6.4	0.22	0.09	0.25
DAR-006-10	“Cityview” Awning Window-Single Glazed	6EVGy	3	3	50%	24%	5.8	0.3	0.19	0.25
DAR-006-11	“Cityview” Awning Window-Single Glazed	6EVClr	2.5	3.5	41%	31%	5.8	0.42	0.4	0.25
DAR-006-12	“Cityview” Awning Window-Single Glazed	6SpGy	3	2	48%	8%	6.8	0.26	0.05	0.25
DAR-006-13	“Cityview” Awning Window-Single Glazed	6AB	2.5	2.5	41%	14%	6.8	0.36	0.31	0.25
DAR-006-14	“Cityview” Awning Window-Single Glazed	6EVBz	3	3	48%	25%	5.8	0.32	0.22	0.25
DAR-006-15	“Cityview” Awning Window-Single Glazed	6SpGn	2.5	2.5	41%	14%	6.8	0.36	0.4	0.25
DAR-006-16	“Cityview” Awning Window-Single Glazed	6EVBGn	3	3	48%	25%	5.8	0.32	0.34	0.25
DAR-006-17	“Cityview” Awning Window-Single Glazed	6EVAB	3.5	3	52%	22%	5.8	0.27	0.23	0.25
DAR-006-18	“Cityview” Awning Window-Single Glazed	6EVSpGn	3.5	3	51%	22%	5.8	0.27	0.29	0.25
DAR-016-01	"Cityview" Awning Window - Double Glazed	6Clr/12/6Clr	2.5	4.5	44%	47%	4.8	0.47	0.47	0.25
DAR-016-02	"Cityview" Awning Window - Double Glazed	6LE/12/6Clr	3	5	50%	50%	4.3	0.41	0.44	0.25
DAR-016-03	"Cityview" Awning Window - Double Glazed	6InsClr/12/6EA	3	5	48%	51%	4.3	0.44	0.44	0.25
DAR-016-04	"Cityview" Awning Window - Double Glazed	6InsEG/12/6Clr	4	4	57%	36%	4.8	0.28	0.35	0.25
DAR-016-05	"Cityview" Awning Window - Double Glazed	6InsEG/12/6EA	4.5	4	61%	40%	4.3	0.25	0.32	0.25
DAR-016-06	"Cityview" Awning Window - Double Glazed	6InsTS21/12/6Clr	5	3.5	66%	30%	4.6	0.16	0.1	0.25
DAR-016-07	"Cityview" Awning Window - Double Glazed	6TS21/12/6EA	5	3.5	69%	32%	4.3	0.14	0.09	0.25
DAR-016-08	"Cityview" Awning Window - Double Glazed	6GyLE/12Ar/6.38ClrLam	4.5	4	64%	39%	4.1	0.21	0.18	0.25
DAR-016-09	"Cityview" Awning Window - Double Glazed	6/12/6EVClr	3.5	5	50%	48%	4.4	0.4	0.37	0.25
DAR-016-10	"Cityview" Awning Window - Double Glazed	6EVClr/12/6Clr	3.5	4.5	52%	47%	4.4	0.38	0.37	0.25
DAR-016-11	"Cityview" Awning Window - Double Glazed	6TS21/12/6EVClr	5	3.5	67%	33%	4.4	0.15	0.09	0.25
DAR-016-12	"Cityview" Awning Window - Double Glazed	6SpGn/12/6EVClr	4.5	4	61%	38%	4.4	0.23	0.28	0.25
DAR-016-13	"Cityview" Awning Window - Double Glazed	6SpGn/12/6Clr	4	4	56%	37%	4.8	0.28	0.35	0.25
DAR-016-14	"Cityview" Awning Window - Double Glazed	6TS21Gn/12/6Clr	5	3.5	65%	30%	4.6	0.16	0.1	0.25
DAR-016-15	"Cityview" Awning Window - Double Glazed	6.38ClrLam/12/6.38ClrLam	3	4.5	46%	46%	4.7	0.44	0.46	0.25
DAR-016-16	"Cityview" Awning Window - Double Glazed	6.38GyLam/12Ar/6.38ClrLam	3.5	4.5	53%	41%	4.7	0.33	0.22	0.25
DAR-016-17	"Cityview" Awning Window - Double Glazed	6EVClr/6Ar/6Clr	3.5	4.5	51%	45%	4.6	0.38	0.37	0.25
DAR-016-18	"Cityview" Awning Window - Double Glazed	6SpGy/6Ar/6Clr	4.5	3.5	63%	28%	4.9	0.18	0.05	0.25
DAR-016-19	"Cityview" Awning Window - Double Glazed	6/12Ar/10.38ClrLam	3.5	5	45%	48%	4.6	0.45	0.46	0.25
DAR-016-20	"Cityview" Awning Window - Double Glazed	6Gy/12Ar/6Gy	4	4	56%	38%	4.7	0.29	0.11	0.25
DAR-016-21	"Cityview" Awning Window - Double Glazed	6Gy/12Ar/6Clr	3.5	4	55%	40%	4.7	0.31	0.22	0.25
DAR-016-22	"Cityview" Awning Window - Double Glazed	6SpGy/12Ar/6Clr	4.5	3.5	64%	30%	4.7	0.17	0.05	0.25
DAR-016-23	"Cityview" Awning Window - Double Glazed	6.5FGI Sil/12Ar/6FGI OE Acu	3.5	5	54%	51%	4	0.37	0.47	0.25
DAR-016-24	"Cityview" Awning Window - Double Glazed	6.38FGI Ptk Wt /12Ar/6FGI OE Prv	4	4.5	58%	47%	4	0.31	0.35	0.25
DAR-016-25	"Cityview" Awning Window - Double Glazed	6FGI Env Clr / 12Ar / 6FGI OE Clr	3.5	5	53%	52%	4	0.39	0.47	0.25
DAR-016-26	"Cityview" Awning Window - Double Glazed	6FGI Env Gy / 12Ar / 6FGI OE Gy	4.5	4.5	62%	43%	4	0.24	0.22	0.25
