CityView Double Hung Window

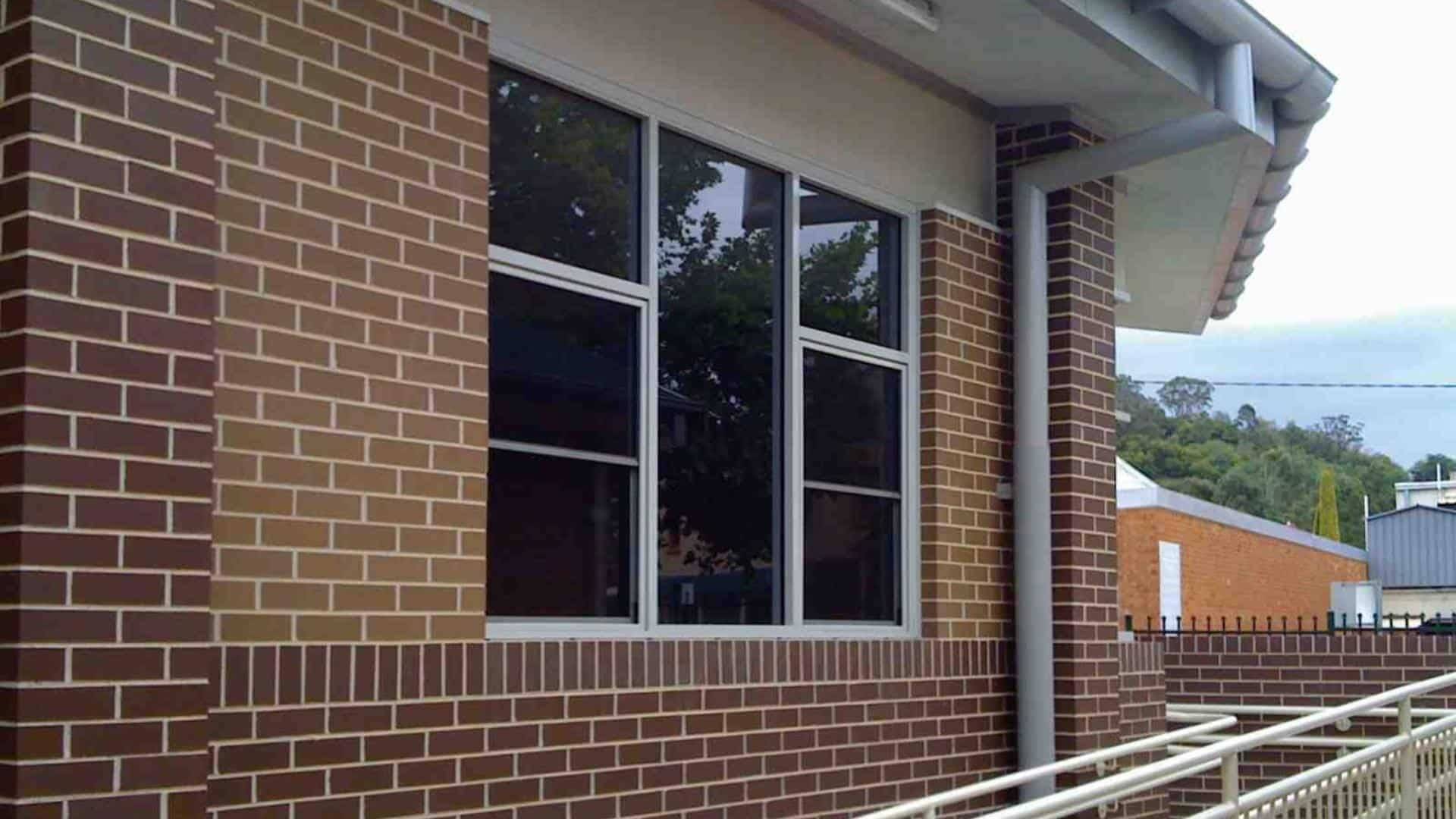

The CityView double hung window is an ideal choice for shopping centres, offices, showrooms and commercial buildings.



About CityView Double Hung Window

With a modern, slimeline design, the cityview double hung window provides maximum ventilation and unobstructed views.
It also comes with a range of sub head and also features a finger groove grip for ease of operation.

As with all of the CityView systems, the double hung window has been tested and exceeds Australian Standard AS2047.

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-006-01	“Cityview” Awning Window-Single Glazed	6Clr	1.5	3	28%	21%	6.9	0.53	0.52	0.25
DAR-006-02	“Cityview” Awning Window-Single Glazed	6Gry	2.5	2.5	39%	14%	6.9	0.39	0.26	0.25
DAR-006-03	“Cityview” Awning Window-Single Glazed	6TS21	3.5	2.5	52%	11%	6.4	0.23	0.12	0.25
DAR-006-04	“Cityview” Awning Window-Single Glazed	6.38CPNtl	3	3.5	47%	28%	5.8	0.35	0.35	0.25
DAR-006-05	“Cityview” Awning Window-Single Glazed	6.38CPGrn	3	3.5	47%	28%	5.8	0.35	0.42	0.25
DAR-006-06	“Cityview” Awning Window-Single Glazed	6.38CPGry	3	3.5	47%	27%	5.8	0.34	0.23	0.25
DAR-006-07	“Cityview” Awning Window-Single Glazed	6.38CPClr	2.5	4	40%	34%	5.7	0.45	0.49	0.25
DAR-006-08	“Cityview” Awning Window-Single Glazed	6.38ClrLam	1.5	3	30%	22%	6.8	0.51	0.52	0.25
DAR-006-09	“Cityview” Awning Window-Single Glazed	6AzTS21	3.5	2.5	52%	12%	6.4	0.22	0.09	0.25
DAR-006-10	“Cityview” Awning Window-Single Glazed	6EVGy	3	3	50%	24%	5.8	0.3	0.19	0.25
DAR-006-11	“Cityview” Awning Window-Single Glazed	6EVClr	2.5	3.5	41%	31%	5.8	0.42	0.4	0.25
DAR-006-12	“Cityview” Awning Window-Single Glazed	6SpGy	3	2	48%	8%	6.8	0.26	0.05	0.25
DAR-006-13	“Cityview” Awning Window-Single Glazed	6AB	2.5	2.5	41%	14%	6.8	0.36	0.31	0.25
DAR-006-14	“Cityview” Awning Window-Single Glazed	6EVBz	3	3	48%	25%	5.8	0.32	0.22	0.25
DAR-006-15	“Cityview” Awning Window-Single Glazed	6SpGn	2.5	2.5	41%	14%	6.8	0.36	0.4	0.25
DAR-006-16	“Cityview” Awning Window-Single Glazed	6EVBGn	3	3	48%	25%	5.8	0.32	0.34	0.25
DAR-006-17	“Cityview” Awning Window-Single Glazed	6EVAB	3.5	3	52%	22%	5.8	0.27	0.23	0.25
DAR-006-18	“Cityview” Awning Window-Single Glazed	6EVSpGn	3.5	3	51%	22%	5.8	0.27	0.29	0.25
DAR-016-01	"Cityview" Awning Window - Double Glazed	6Clr/12/6Clr	2.5	4.5	44%	47%	4.8	0.47	0.47	0.25
DAR-016-02	"Cityview" Awning Window - Double Glazed	6LE/12/6Clr	3	5	50%	50%	4.3	0.41	0.44	0.25
DAR-016-03	"Cityview" Awning Window - Double Glazed	6InsClr/12/6EA	3	5	48%	51%	4.3	0.44	0.44	0.25
DAR-016-04	"Cityview" Awning Window - Double Glazed	6InsEG/12/6Clr	4	4	57%	36%	4.8	0.28	0.35	0.25
DAR-016-05	"Cityview" Awning Window - Double Glazed	6InsEG/12/6EA	4.5	4	61%	40%	4.3	0.25	0.32	0.25
DAR-016-06	"Cityview" Awning Window - Double Glazed	6InsTS21/12/6Clr	5	3.5	66%	30%	4.6	0.16	0.1	0.25
DAR-016-07	"Cityview" Awning Window - Double Glazed	6TS21/12/6EA	5	3.5	69%	32%	4.3	0.14	0.09	0.25
DAR-016-08	"Cityview" Awning Window - Double Glazed	6GyLE/12Ar/6.38ClrLam	4.5	4	64%	39%	4.1	0.21	0.18	0.25
DAR-016-09	"Cityview" Awning Window - Double Glazed	6/12/6EVClr	3.5	5	50%	48%	4.4	0.4	0.37	0.25
DAR-016-10	"Cityview" Awning Window - Double Glazed	6EVClr/12/6Clr	3.5	4.5	52%	47%	4.4	0.38	0.37	0.25
DAR-016-11	"Cityview" Awning Window - Double Glazed	6TS21/12/6EVClr	5	3.5	67%	33%	4.4	0.15	0.09	0.25
DAR-016-12	"Cityview" Awning Window - Double Glazed	6SpGn/12/6EVClr	4.5	4	61%	38%	4.4	0.23	0.28	0.25
DAR-016-13	"Cityview" Awning Window - Double Glazed	6SpGn/12/6Clr	4	4	56%	37%	4.8	0.28	0.35	0.25
DAR-016-14	"Cityview" Awning Window - Double Glazed	6TS21Gn/12/6Clr	5	3.5	65%	30%	4.6	0.16	0.1	0.25
DAR-016-15	"Cityview" Awning Window - Double Glazed	6.38ClrLam/12/6.38ClrLam	3	4.5	46%	46%	4.7	0.44	0.46	0.25
DAR-016-16	"Cityview" Awning Window - Double Glazed	6.38GyLam/12Ar/6.38ClrLam	3.5	4.5	53%	41%	4.7	0.33	0.22	0.25
DAR-016-17	"Cityview" Awning Window - Double Glazed	6EVClr/6Ar/6Clr	3.5	4.5	51%	45%	4.6	0.38	0.37	0.25
DAR-016-18	"Cityview" Awning Window - Double Glazed	6SpGy/6Ar/6Clr	4.5	3.5	63%	28%	4.9	0.18	0.05	0.25
DAR-016-19	"Cityview" Awning Window - Double Glazed	6/12Ar/10.38ClrLam	3.5	5	45%	48%	4.6	0.45	0.46	0.25
DAR-016-20	"Cityview" Awning Window - Double Glazed	6Gy/12Ar/6Gy	4	4	56%	38%	4.7	0.29	0.11	0.25
DAR-016-21	"Cityview" Awning Window - Double Glazed	6Gy/12Ar/6Clr	3.5	4	55%	40%	4.7	0.31	0.22	0.25
DAR-016-22	"Cityview" Awning Window - Double Glazed	6SpGy/12Ar/6Clr	4.5	3.5	64%	30%	4.7	0.17	0.05	0.25
DAR-016-23	"Cityview" Awning Window - Double Glazed	6.5FGI Sil/12Ar/6FGI OE Acu	3.5	5	54%	51%	4	0.37	0.47	0.25
DAR-016-24	"Cityview" Awning Window - Double Glazed	6.38FGI Ptk Wt /12Ar/6FGI OE Prv	4	4.5	58%	47%	4	0.31	0.35	0.25
DAR-016-25	"Cityview" Awning Window - Double Glazed	6FGI Env Clr / 12Ar / 6FGI OE Clr	3.5	5	53%	52%	4	0.39	0.47	0.25
DAR-016-26	"Cityview" Awning Window - Double Glazed	6FGI Env Gy / 12Ar / 6FGI OE Gy	4.5	4.5	62%	43%	4	0.24	0.22	0.25

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Access Via Darley Portal

image presents CityView DblHungWindow LandscapeFlyer_2Sep22-COVER

Download Product Flyer

Download CityView™ Brochure

Design Features

Accepts a glass thickness from 4mm and IGUs of 16mm and 20mm thickness
Compatible with other Darley Aluminium Commercial and Residential Systems
Self-draining transom

Range of sub head and sub sill options
Range of heavy duty mullion options for tall framing and high wind areas

Specifications

System	Maximum weight per panel	Maximum hieight	Maxiumim Width	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
Double Hung Window	16kg	2100mm	900mm	4mm to 20mm	AZT0491.20	300	1800	4500
