Darley is pleased to announce the release of the NEW CityView Gas Strut Servery Window.



CityView Gas Strut Servery Window

Darley is pleased to announce the release of the NEW CityView Gas Strut Servery Window.

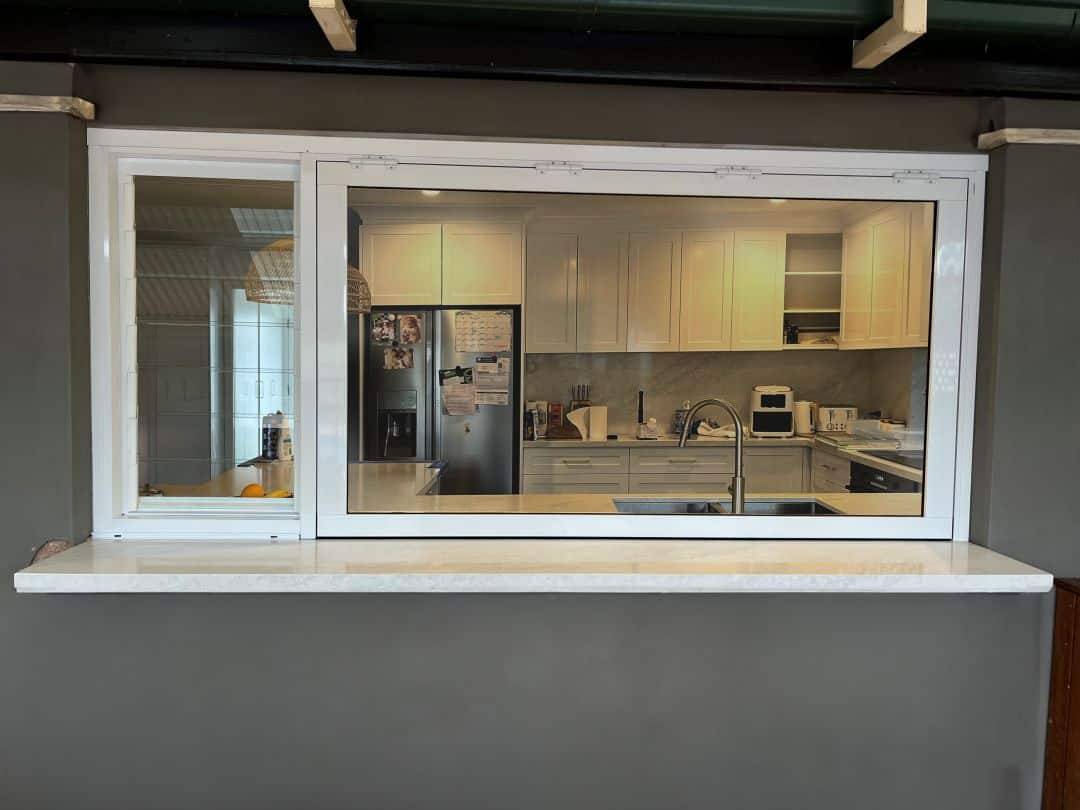

A great addition to residential and commercial buildings, this innovative window system offers a seamless transition from indoor to outdoor living spaces. The perfect combination of aesthetics and functionality, this new servery strut window can transform any room by maximising light, enhancing natural airflow & ventilation, and providing unobstructed views.

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-006-01	“Cityview” Awning Window-Single Glazed	6Clr	1.5	3	28%	21%	6.9	0.53	0.52	0.25
DAR-006-02	“Cityview” Awning Window-Single Glazed	6Gry	2.5	2.5	39%	14%	6.9	0.39	0.26	0.25
DAR-006-03	“Cityview” Awning Window-Single Glazed	6TS21	3.5	2.5	52%	11%	6.4	0.23	0.12	0.25
DAR-006-04	“Cityview” Awning Window-Single Glazed	6.38CPNtl	3	3.5	47%	28%	5.8	0.35	0.35	0.25
DAR-006-05	“Cityview” Awning Window-Single Glazed	6.38CPGrn	3	3.5	47%	28%	5.8	0.35	0.42	0.25
DAR-006-06	“Cityview” Awning Window-Single Glazed	6.38CPGry	3	3.5	47%	27%	5.8	0.34	0.23	0.25
DAR-006-07	“Cityview” Awning Window-Single Glazed	6.38CPClr	2.5	4	40%	34%	5.7	0.45	0.49	0.25
DAR-006-08	“Cityview” Awning Window-Single Glazed	6.38ClrLam	1.5	3	30%	22%	6.8	0.51	0.52	0.25
DAR-006-09	“Cityview” Awning Window-Single Glazed	6AzTS21	3.5	2.5	52%	12%	6.4	0.22	0.09	0.25
DAR-006-10	“Cityview” Awning Window-Single Glazed	6EVGy	3	3	50%	24%	5.8	0.3	0.19	0.25
DAR-006-11	“Cityview” Awning Window-Single Glazed	6EVClr	2.5	3.5	41%	31%	5.8	0.42	0.4	0.25
DAR-006-12	“Cityview” Awning Window-Single Glazed	6SpGy	3	2	48%	8%	6.8	0.26	0.05	0.25
DAR-006-13	“Cityview” Awning Window-Single Glazed	6AB	2.5	2.5	41%	14%	6.8	0.36	0.31	0.25
DAR-006-14	“Cityview” Awning Window-Single Glazed	6EVBz	3	3	48%	25%	5.8	0.32	0.22	0.25
DAR-006-15	“Cityview” Awning Window-Single Glazed	6SpGn	2.5	2.5	41%	14%	6.8	0.36	0.4	0.25
DAR-006-16	“Cityview” Awning Window-Single Glazed	6EVBGn	3	3	48%	25%	5.8	0.32	0.34	0.25
DAR-006-17	“Cityview” Awning Window-Single Glazed	6EVAB	3.5	3	52%	22%	5.8	0.27	0.23	0.25
DAR-006-18	“Cityview” Awning Window-Single Glazed	6EVSpGn	3.5	3	51%	22%	5.8	0.27	0.29	0.25
DAR-016-01	"Cityview" Awning Window - Double Glazed	6Clr/12/6Clr	2.5	4.5	44%	47%	4.8	0.47	0.47	0.25
DAR-016-02	"Cityview" Awning Window - Double Glazed	6LE/12/6Clr	3	5	50%	50%	4.3	0.41	0.44	0.25
DAR-016-03	"Cityview" Awning Window - Double Glazed	6InsClr/12/6EA	3	5	48%	51%	4.3	0.44	0.44	0.25
DAR-016-04	"Cityview" Awning Window - Double Glazed	6InsEG/12/6Clr	4	4	57%	36%	4.8	0.28	0.35	0.25
DAR-016-05	"Cityview" Awning Window - Double Glazed	6InsEG/12/6EA	4.5	4	61%	40%	4.3	0.25	0.32	0.25
DAR-016-06	"Cityview" Awning Window - Double Glazed	6InsTS21/12/6Clr	5	3.5	66%	30%	4.6	0.16	0.1	0.25
DAR-016-07	"Cityview" Awning Window - Double Glazed	6TS21/12/6EA	5	3.5	69%	32%	4.3	0.14	0.09	0.25
DAR-016-08	"Cityview" Awning Window - Double Glazed	6GyLE/12Ar/6.38ClrLam	4.5	4	64%	39%	4.1	0.21	0.18	0.25
DAR-016-09	"Cityview" Awning Window - Double Glazed	6/12/6EVClr	3.5	5	50%	48%	4.4	0.4	0.37	0.25
DAR-016-10	"Cityview" Awning Window - Double Glazed	6EVClr/12/6Clr	3.5	4.5	52%	47%	4.4	0.38	0.37	0.25
DAR-016-11	"Cityview" Awning Window - Double Glazed	6TS21/12/6EVClr	5	3.5	67%	33%	4.4	0.15	0.09	0.25
DAR-016-12	"Cityview" Awning Window - Double Glazed	6SpGn/12/6EVClr	4.5	4	61%	38%	4.4	0.23	0.28	0.25
DAR-016-13	"Cityview" Awning Window - Double Glazed	6SpGn/12/6Clr	4	4	56%	37%	4.8	0.28	0.35	0.25
DAR-016-14	"Cityview" Awning Window - Double Glazed	6TS21Gn/12/6Clr	5	3.5	65%	30%	4.6	0.16	0.1	0.25
DAR-016-15	"Cityview" Awning Window - Double Glazed	6.38ClrLam/12/6.38ClrLam	3	4.5	46%	46%	4.7	0.44	0.46	0.25
DAR-016-16	"Cityview" Awning Window - Double Glazed	6.38GyLam/12Ar/6.38ClrLam	3.5	4.5	53%	41%	4.7	0.33	0.22	0.25
DAR-016-17	"Cityview" Awning Window - Double Glazed	6EVClr/6Ar/6Clr	3.5	4.5	51%	45%	4.6	0.38	0.37	0.25
DAR-016-18	"Cityview" Awning Window - Double Glazed	6SpGy/6Ar/6Clr	4.5	3.5	63%	28%	4.9	0.18	0.05	0.25
DAR-016-19	"Cityview" Awning Window - Double Glazed	6/12Ar/10.38ClrLam	3.5	5	45%	48%	4.6	0.45	0.46	0.25
DAR-016-20	"Cityview" Awning Window - Double Glazed	6Gy/12Ar/6Gy	4	4	56%	38%	4.7	0.29	0.11	0.25
DAR-016-21	"Cityview" Awning Window - Double Glazed	6Gy/12Ar/6Clr	3.5	4	55%	40%	4.7	0.31	0.22	0.25
DAR-016-22	"Cityview" Awning Window - Double Glazed	6SpGy/12Ar/6Clr	4.5	3.5	64%	30%	4.7	0.17	0.05	0.25
DAR-016-23	"Cityview" Awning Window - Double Glazed	6.5FGI Sil/12Ar/6FGI OE Acu	3.5	5	54%	51%	4	0.37	0.47	0.25
DAR-016-24	"Cityview" Awning Window - Double Glazed	6.38FGI Ptk Wt /12Ar/6FGI OE Prv	4	4.5	58%	47%	4	0.31	0.35	0.25
DAR-016-25	"Cityview" Awning Window - Double Glazed	6FGI Env Clr / 12Ar / 6FGI OE Clr	3.5	5	53%	52%	4	0.39	0.47	0.25
DAR-016-26	"Cityview" Awning Window - Double Glazed	6FGI Env Gy / 12Ar / 6FGI OE Gy	4.5	4.5	62%	43%	4	0.24	0.22	0.25

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Access Via Darley Portal

Download Product Flyer

Download CityView™ Brochure

Design Features

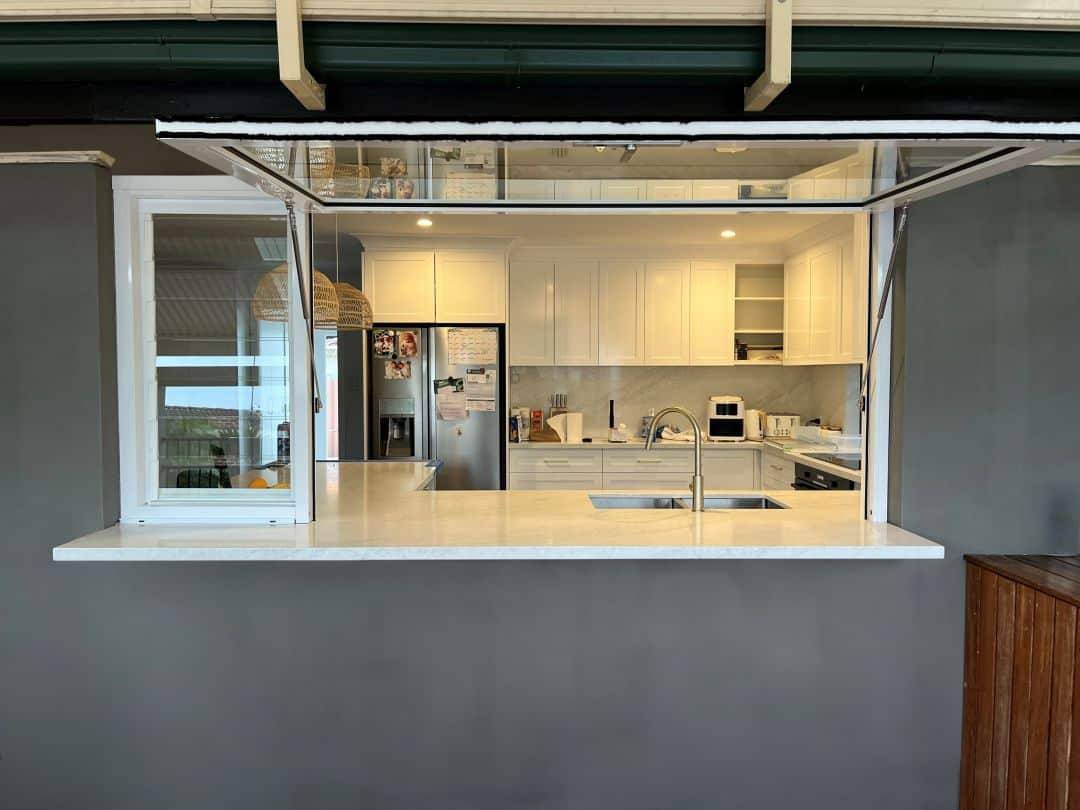

Expansive outdoor views with a sash that opens 90 degrees
Accepts a glass thickness of up to 10.38mm
Accepts a maximum sash weight of up to 50kg
A versatile window system that is easy to fabricate and install

Made with heavy-duty spigots that facilitate the smooth operation of the window
Available in manual and automated options
Compatible with a variety of Darley’s commercial framing systems and CityView door systems
Tested to Australian Standard AS2047: Windows and external glazed doors in buildings

Specifications

System	Maximum weight per sash	Maximum Sash Height^	Maximum Sash Width^	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
CityView Servery strut window	50kg	1200mm	2000mm	10.38mm	TBA	TBA	TBA	TBA
