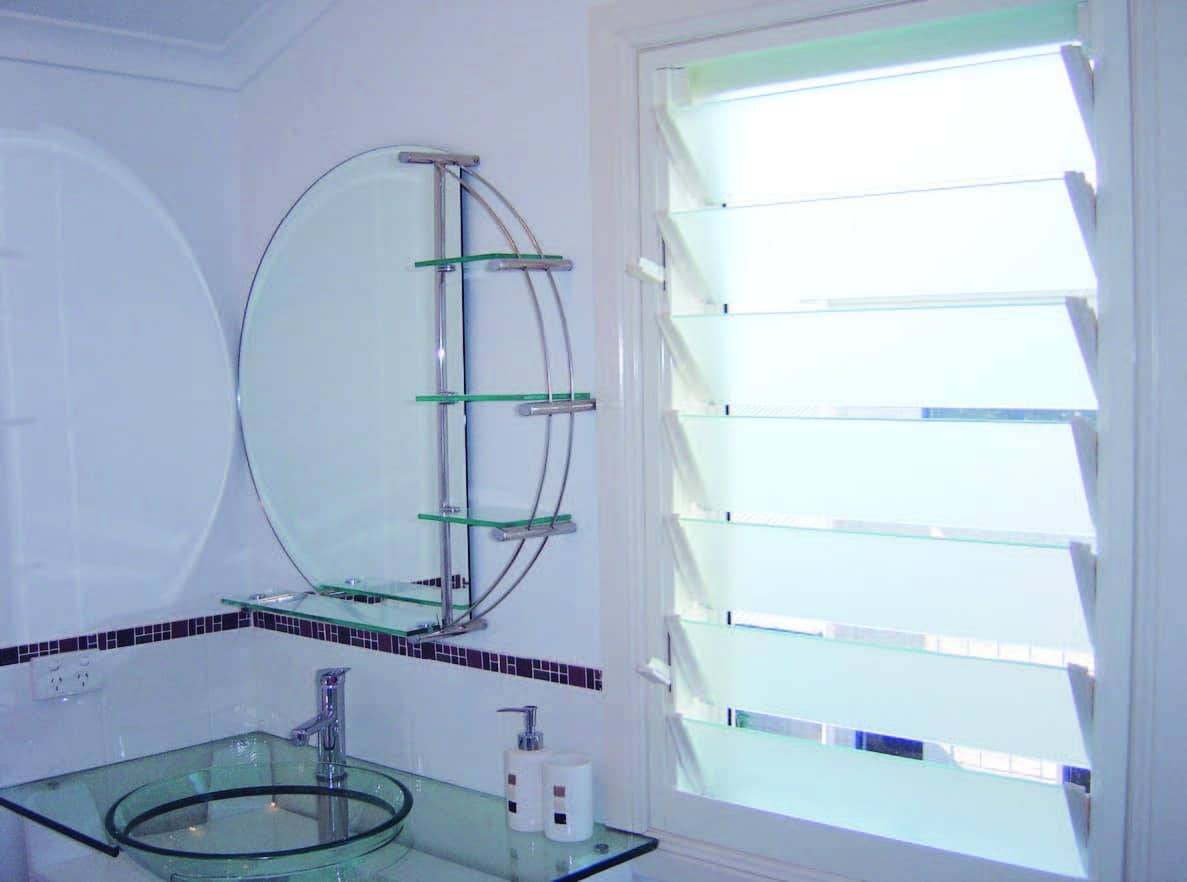

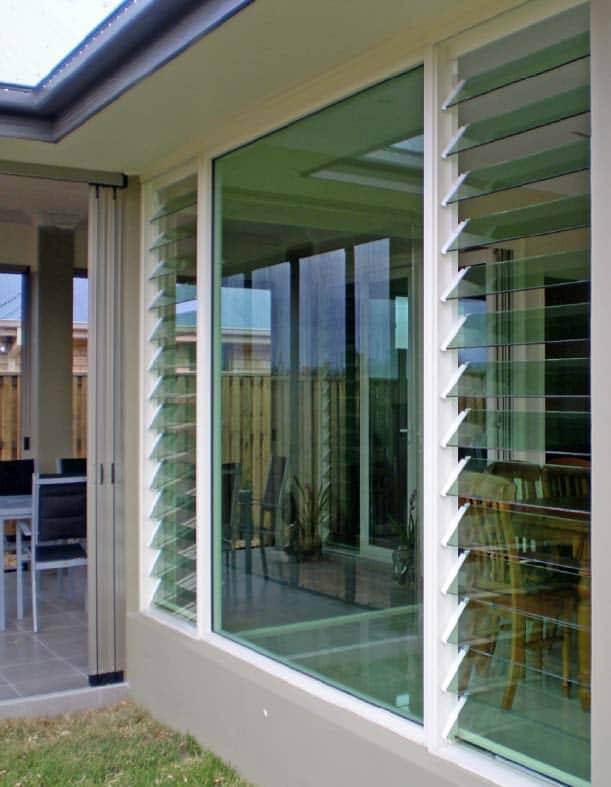

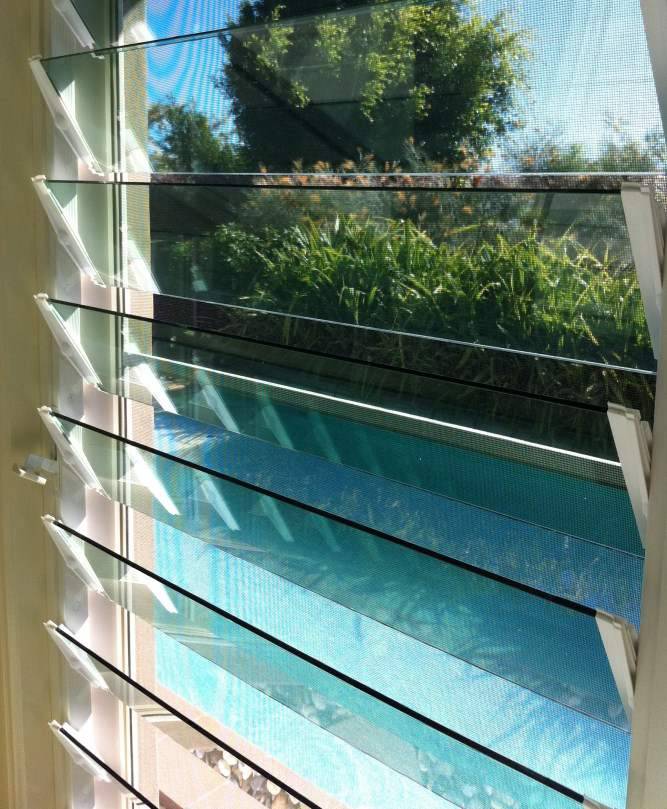

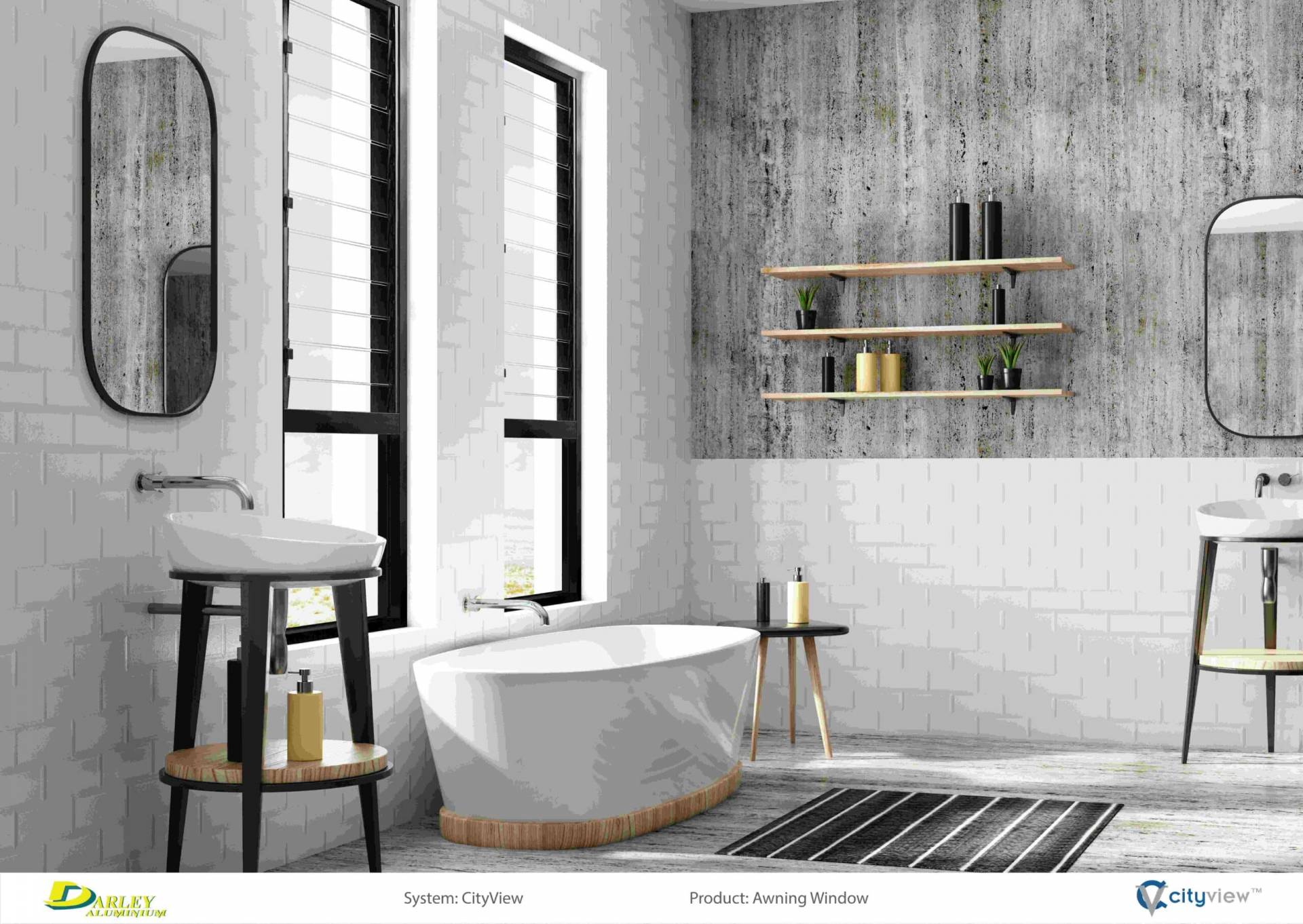

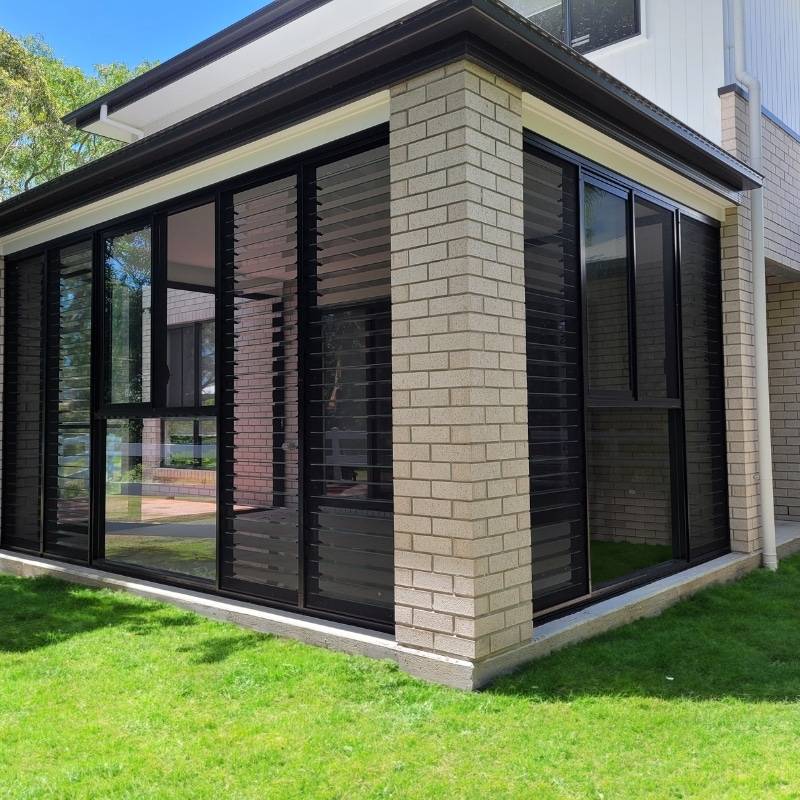

CityView Louvre Windows

Widely used in apartments and high-end residential developments, the CityView louvre
window system allows you to adjust the amount of ventilation and sunlight to suit
your comfort levels.
PlayPause

About CityView Louvre Windows

Available in blade widths of 102mm and 152mm, the CityView louvre window is also
suitable for offices, show rooms, shopping centres and other commercial developments.

Compatible with the 101.6mm centre glazing framing system, the CityView louvre system
accepts blade spans of up 900mm wide.

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Access Via Darley Portal
image presents CityView LouvreWindow LandscapeFlyer_2Sep22-COVER
Download Product Flyer
Download CityView™ Brochure

Design Features

  • null
    Blade spans of up to 900mm wide
  • null
    Compatible with other Darley Aluminium Commercial and Residential Systems
  • null
    Aluminium and Cedar blade options available
  • null
    Self Draining
  • null
    Range of heavy duty mullion options for tall framing and high wind areas

Specifications

SystemMaximum HeightMaxiumim WidthGlass ThicknessTest Report No.Water Rating (Pa)Structural (Pa)Ultimate (Pa)
101.6mm Louvre Window2400mm800m14mmAZT0058.101502,1004,000
