CityView Sliding Stacking Patio Door

The CityView Sliding Stacking sliding door is the perfect choice if you are looking for
a functional, cost effective sliding door that offers wide openings that connect indoor living areas to outdoor space such as patios, sundecks and courtyards.

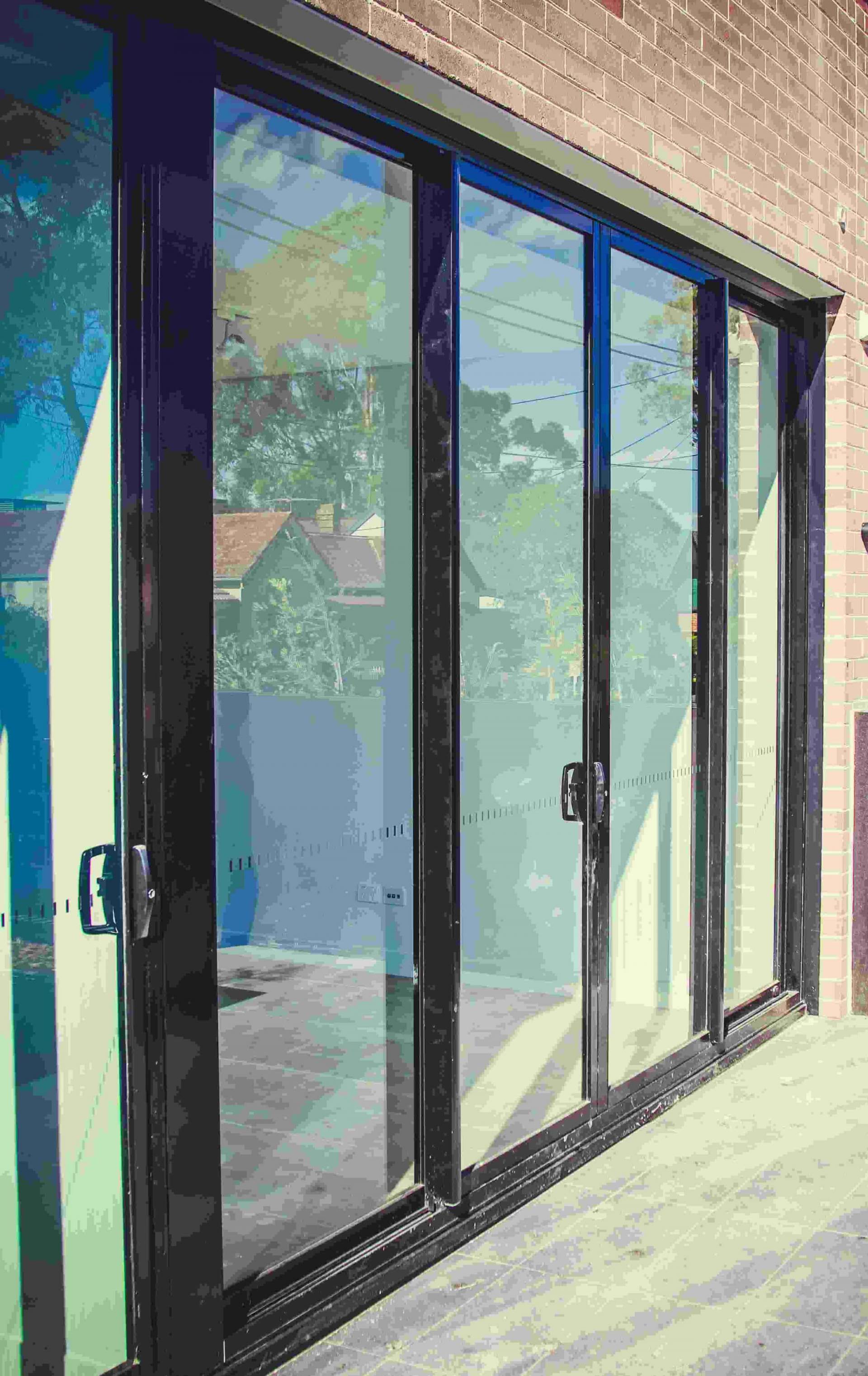

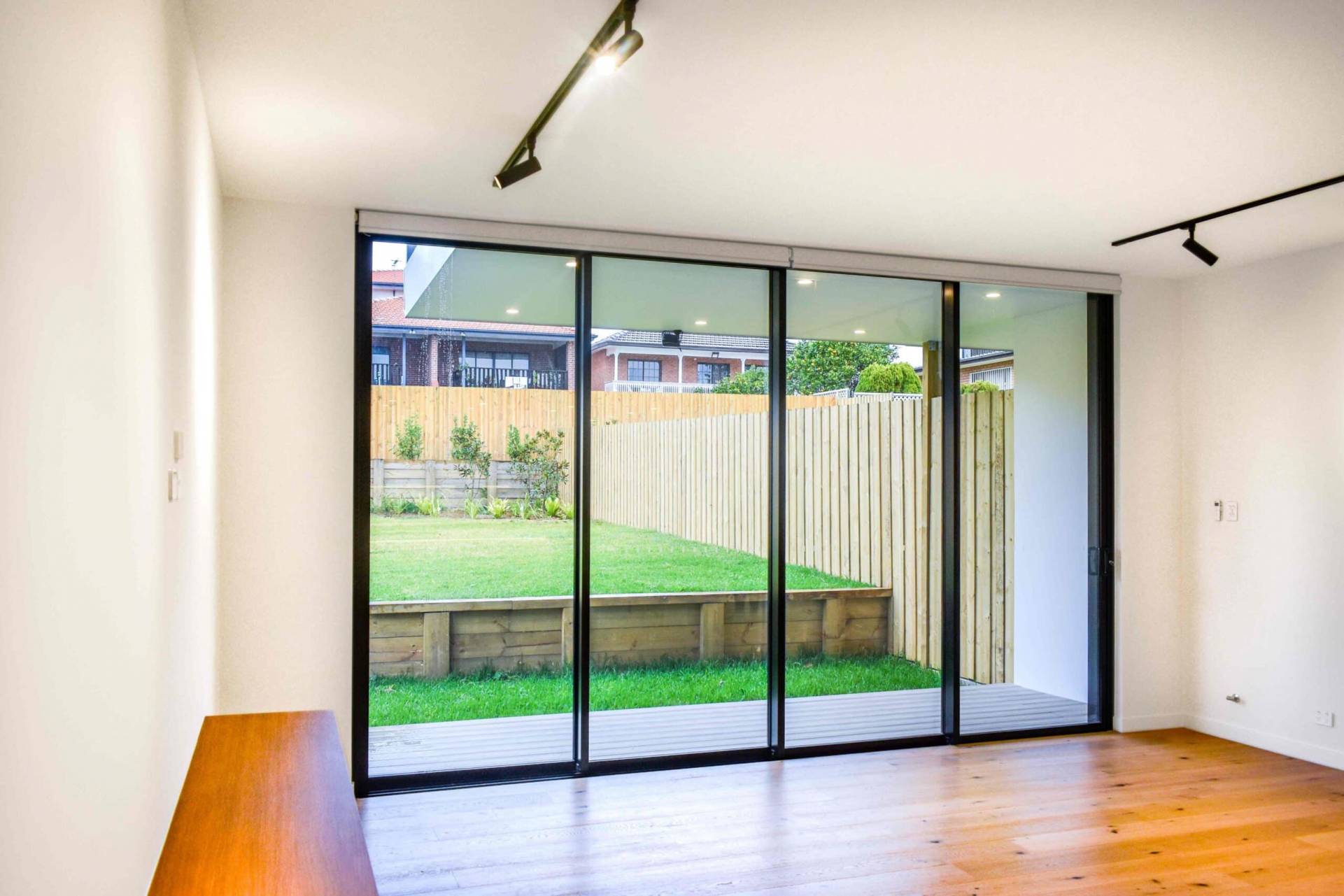

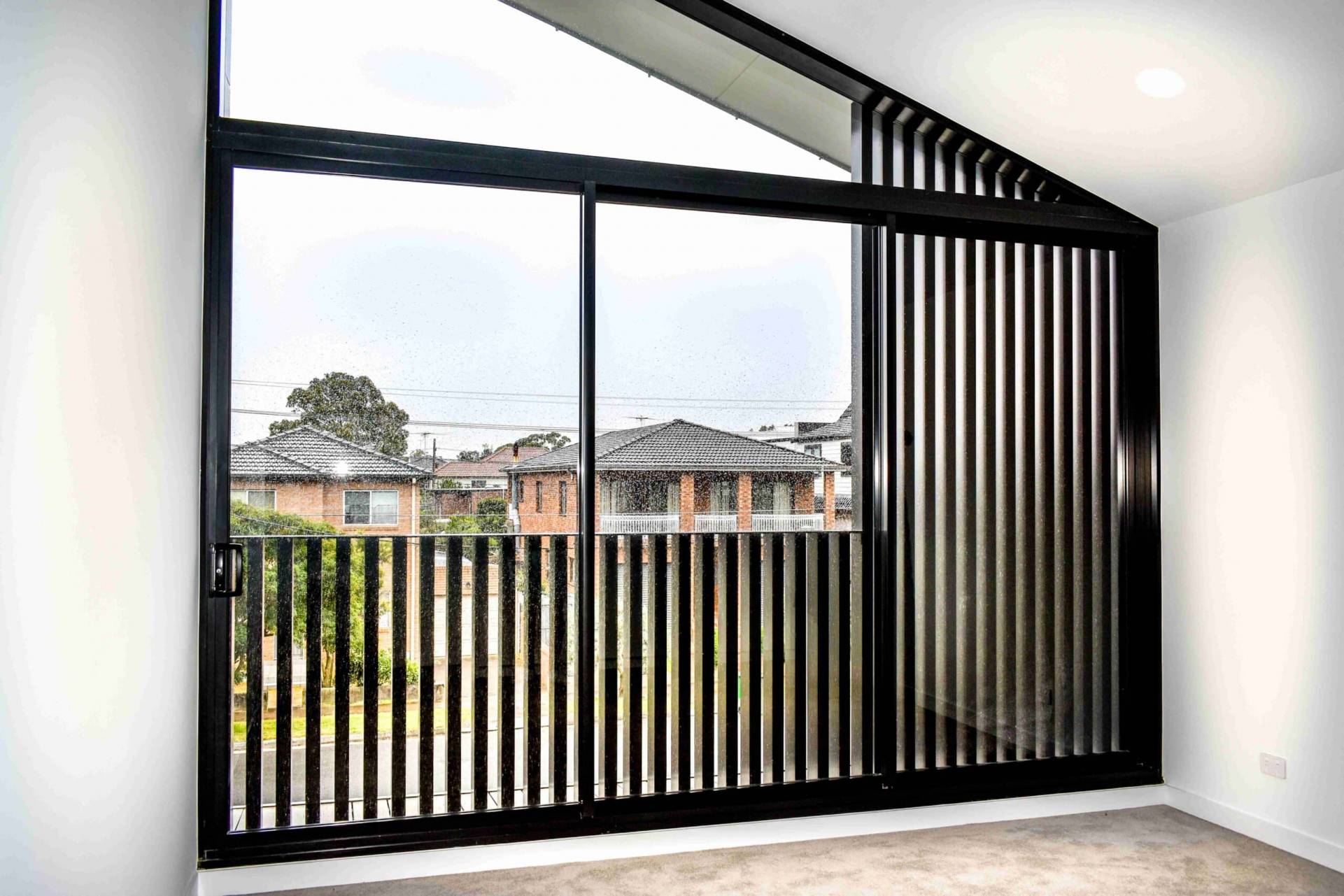

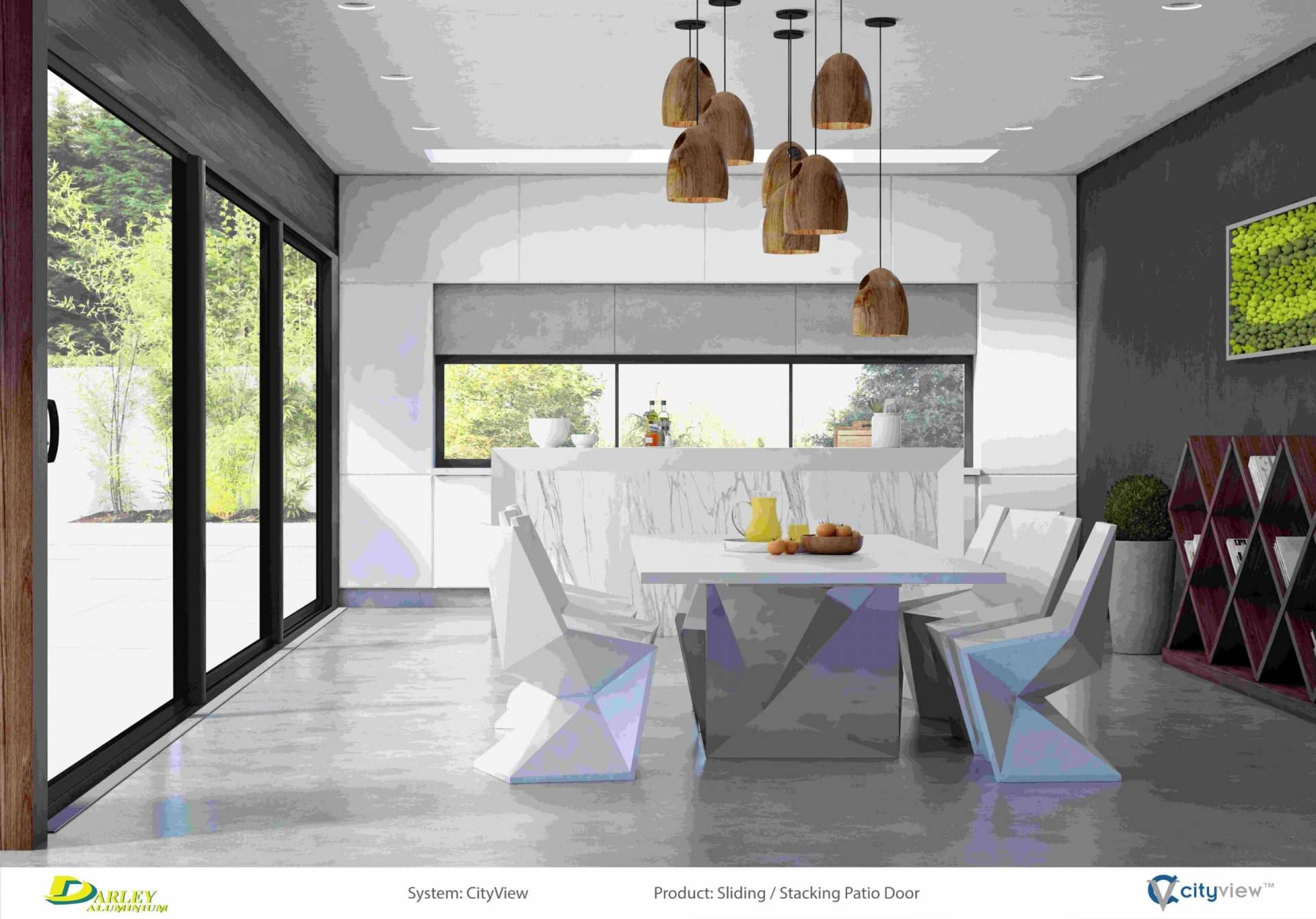

Image presents Patio Sliding Stacking Doors

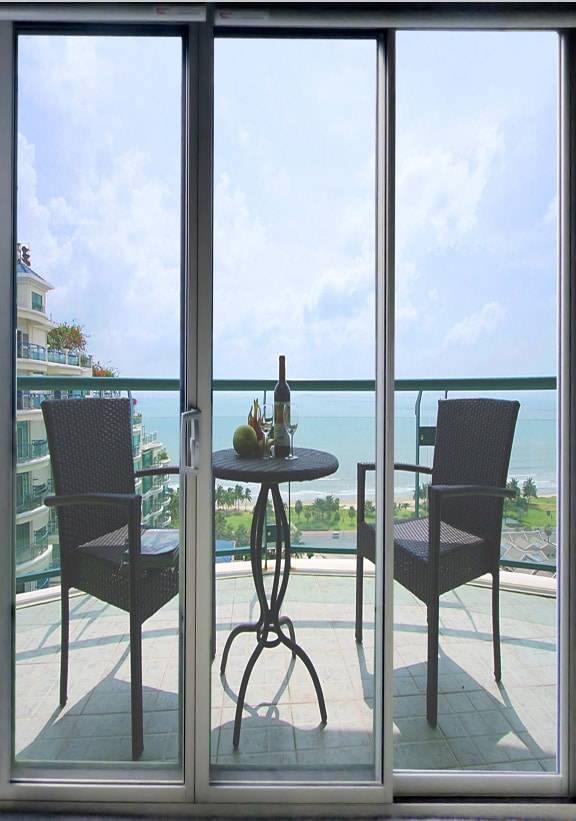

Darley ArchitecturalSysCat2019_INTERNALFINALCOMPLETE_4Sep19_Page_094_Image_0001

About CityView Sliding Stacking Patio Door

Available in a range of configurations to suite any space, the CityView patio sliding door comes with a range of heavy duty mullion options for high wind areas and tall framing.

It also comes with a unique slide in jamb and snap in jamb receiver for minimal tooling requirements and is compatible with a number of external screening options including fly/insect screens and security screens.

Suitable for high end residential and commercial applications such as apartments, the CityView patio sliding door is compatible with Darley’s other commercial and residential window and door systems.

Designed and engineered in Australia, the CityView patio sliding door has been tested and exceeds Australian Standard AS2047.

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-020-01	“Cityview” Patio Sliding Door - Single Glazed	6.38CPNtl	3	3.5	50%	29%	4.4	0.4	0.46	0.48
DAR-020-02	“Cityview” Patio Sliding Door - Single Glazed	6.38CPGn	3.5	3.5	51%	29%	4.3	0.4	0.55	0.48
DAR-020-03	“Cityview” Patio Sliding Door - Single Glazed	6.38CPGy	3.5	3	51%	28%	4.3	0.39	0.3	0.48
DAR-020-04	“Cityview” Patio Sliding Door - Single Glazed	6TS21	4	2	56%	7%	5.4	0.24	0.16	0.48
DAR-020-05	“Cityview” Patio Sliding Door - Single Glazed	6Gy	2.5	2	38%	10%	6.1	0.45	0.32	0.48
DAR-020-06	“Cityview” Patio Sliding Door - Single Glazed	6Clr	1	2.5	22%	19%	6.1	0.65	0.68	0.48
DAR-020-07	“Cityview” Patio Sliding Door - Single Glazed	6EVGy	3.5	3	55%	23%	4.5	0.32	0.25	0.48
DAR-020-08	“Cityview” Patio Sliding Door - Single Glazed	6SolEGy	4	3	58%	21%	4.4	0.28	0.23	0.48
DAR-020-09	“Cityview” Patio Sliding Door - Single Glazed	6SolEClr	3	3.5	49%	29%	4.4	0.41	0.46	0.48
DAR-020-10	“Cityview” Patio Sliding Door - Single Glazed	6.38CPClr	2.5	4	40%	36%	4.3	0.54	0.63	0.48
DAR-020-11	“Cityview” Patio Sliding Door - Single Glazed	6EVClr	2.5	3.5	43%	32%	4.5	0.49	0.51	0.48
DAR-020-12	“Cityview” Patio Sliding Door - Single Glazed	10.38GyLam	2.5	2	39%	13%	5.9	0.46	0.33	0.48
DAR-020-13	“Cityview” Patio Sliding Door - Single Glazed	10.38CPClr	2.5	3.5	43%	35%	4.3	0.51	0.61	0.48
DAR-020-14	“Cityview” Patio Sliding Door - Single Glazed	10.38CPGy	3.5	3	52%	28%	4.3	0.37	0.29	0.48
DAR-020-15	“Cityview” Patio Sliding Door - Single Glazed	10.38CPNtl	3.5	3.5	51%	29%	4.3	0.4	0.48	0.48
DAR-020-16	“Cityview” Patio Sliding Door - Single Glazed	6EVBGn	3.5	3	52%	24%	4.6	0.36	0.44	0.48
DAR-020-17	“Cityview” Patio Sliding Door - Single Glazed	10.38CPGn	3.5	3	54%	26%	4.3	0.35	0.5	0.48
DAR-020-18	“Cityview” Patio Sliding Door - Single Glazed	6AzTS21	4	1.5	57%	6%	5.4	0.23	0.12	0.48
DAR-020-19	“Cityview” Patio Sliding Door - Single Glazed	6EVAB	4	2.5	57%	20%	4.6	0.29	0.3	0.48
DAR-020-20	“Cityview” Patio Sliding Door - Single Glazed	6EVSpGn	4	2.5	56%	20%	4.6	0.3	0.38	0.48
DAR-021-01	“Cityview” Patio Stacking Door - Single Glazed	6.38CPNtl	3	3	47%	24%	4.8	0.41	0.46	1.23
DAR-021-02	“Cityview” Patio Stacking Door - Single Glazed	6.38CPGn	3	3	48%	24%	4.7	0.41	0.56	1.23
DAR-021-03	“Cityview” Patio Stacking Door - Single Glazed	6.38CPGy	3	3	48%	23%	4.7	0.4	0.31	1.23
DAR-021-04	“Cityview” Patio Stacking Door - Single Glazed	6TS21	3.5	1.5	54%	1%	5.7	0.25	0.16	1.23
DAR-021-05	“Cityview” Patio Stacking Door - Single Glazed	6Gy	2	1.5	36%	4%	6.4	0.46	0.33	1.23
DAR-021-06	“Cityview” Patio Stacking Door - Single Glazed	6Clr	1	2	19%	14%	6.4	0.66	0.7	1.23
DAR-021-07	“Cityview” Patio Stacking Door - Single Glazed	6EVGy	3.5	2.5	52%	18%	4.9	0.33	0.25	1.23
DAR-021-08	“Cityview” Patio Stacking Door - Single Glazed	6SolEGy	3.5	2.5	55%	16%	4.8	0.29	0.24	1.23
DAR-021-09	“Cityview” Patio Stacking Door - Single Glazed	6SolEClr	3	3	47%	24%	4.8	0.42	0.47	1.23
DAR-021-10	“Cityview” Patio Stacking Door - Single Glazed	6.38CPClr	2	3.5	38%	31%	4.7	0.55	0.65	1.23
DAR-021-11	“Cityview” Patio Stacking Door - Single Glazed	6EVClr	2.5	3	41%	27%	4.9	0.5	0.53	1.23
DAR-021-12	“Cityview” Patio Stacking Door - Single Glazed	10.38GyLam	2	2	36%	8%	6.2	0.47	0.33	1.23
DAR-021-13	“Cityview” Patio Stacking Door - Single Glazed	10.38CPNtl	3	3	50%	27%	4.5	0.4	0.49	1.23
DAR-021-14	“Cityview” Patio Stacking Door - Single Glazed	10.38CPGy	3.5	3	51%	26%	4.5	0.38	0.3	1.23
DAR-021-15	“Cityview” Patio Stacking Door - Single Glazed	10.38CPClr	2.5	3.5	42%	33%	4.5	0.51	0.63	1.23
DAR-021-16	“Cityview” Patio Stacking Door - Single Glazed	10.38CPGn	3.5	3	53%	24%	4.5	0.35	0.51	1.23
DAR-021-17	“Cityview” Patio Stacking Door - Single Glazed	6AzTS21	4	1.5	56%	3%	5.5	0.23	0.12	1.23
DAR-021-18	“Cityview” Patio Stacking Door - Single Glazed	6SpGy	3	0	49%	-3%	6.2	0.28	0.07	1.23
DAR-021-19	“Cityview” Patio Stacking Door - Single Glazed	6EVEvrGn	3.5	2.5	55%	18%	4.7	0.3	0.39	1.23

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Access Via Darley Portal

image presents CityView PatioSSDoor LandscapeFlyer_2Sep22-COVER

Download Product Flyer

Download CityView™ Brochure

Design Features

Accepts glass thickness from 6mm-20mm
Compatible with other Darley Aluminium Commercial and Residential Systems
Range of sub head and sub sill options
Range of heavy-duty mullion options for tall framing and high wind areas

Unique “Slide-in” Jamb and “Snap-in” Jamb Receivers design results in minimal tooling required
Door panels slide internally
Maximum panel size 2700 mm high x 1350 mm wide subject to complying with the appropriate glazing standard and design wind load requirements
Multiple screening options available for external screening

Range of roller options to accommodate heavy panel weights
Pre-punched Sill requires no fabrication
Tested and approved by an independent NATA accredited laboratory
NFRC Energy rated

Specifications

System	Maximum weight per panel	Maximum hieight	Maxiumim Width	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
