CityView Sliding Window

Look forward to unobstructed views, natural airflow and smooth lines & modern
aesthetic with the CityView Sliding Window.





lakeview retirement village-1 (1)

About CityView Sliding Window

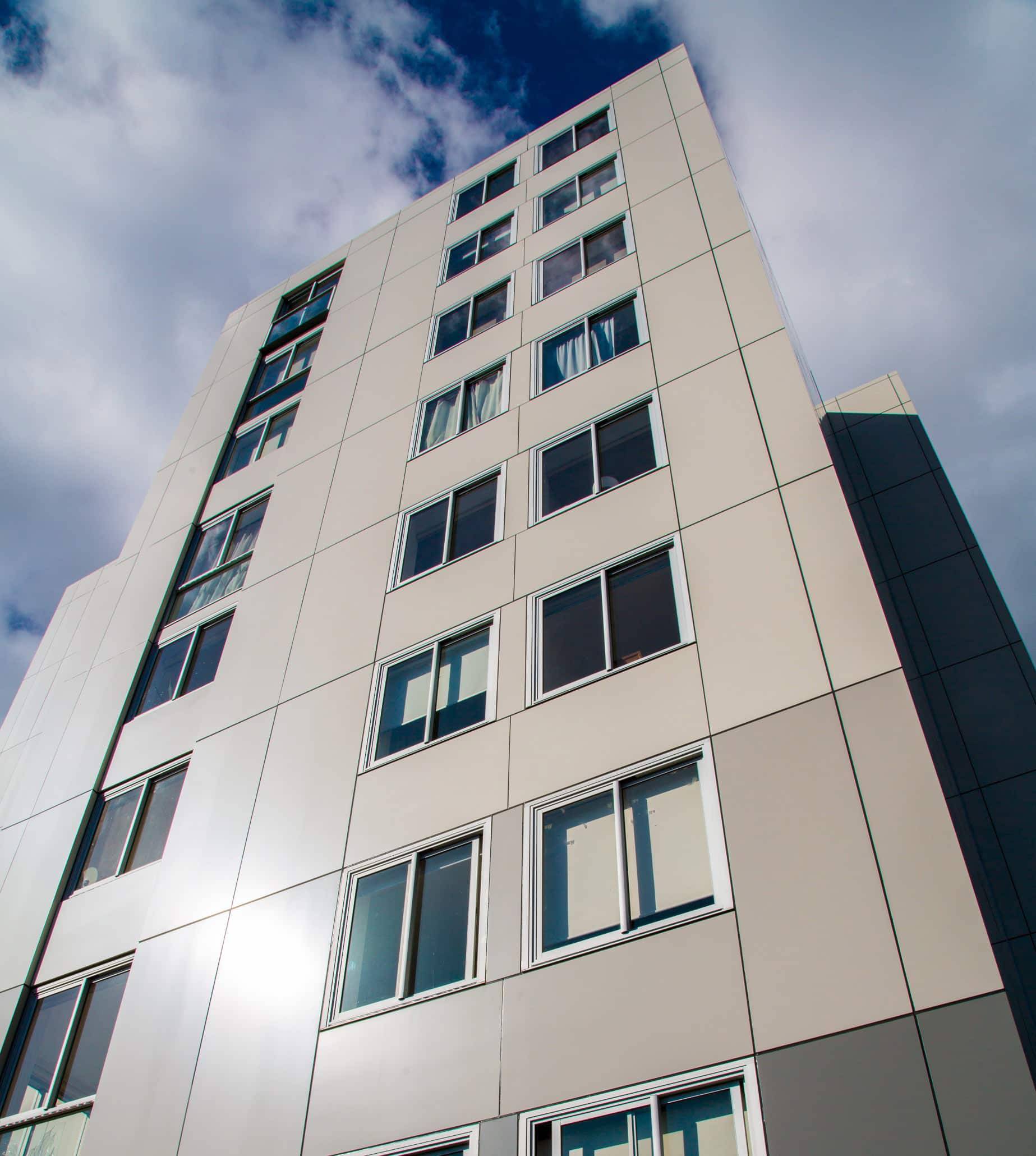

Popular amongst property developers and builders, the CityView Sliding window is
suitable for high-rise apartments, office buildings and other commercial developments. Open and closed sills are available for this sliding window system, with the sills
pre-punch for weep holes.

It accepts a glass thickness of 6mm to 20mm without the use of adapters and is compatible with a number of external screening options including security screens and flyscreens.

The CityView sliding window is an ideal choice to complement other high performing CityView systems including the awning window, double hung window and Darley commercial framing systems.

As with all the windows and doors in the CityView range, the sliding window has been tested and exceeds Australian Standard AS2047.

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-014-01	"Cityview" Sliding Window - Single Glazed	6Clr	1.5	2	29%	10%	6.3	0.56	0.58	1.9
DAR-014-02	"Cityview" Sliding Window - Single Glazed	6Gy	2.5	1.5	41%	2%	6.3	0.4	0.29	1.9
DAR-014-03	"Cityview" Sliding Window - Single Glazed	6InsTS21	4	0	55%	-1%	5.7	0.22	0.13	1.9
DAR-014-04	"Cityview" Sliding Window - Single Glazed	6.38CP Ntrl	3.5	2.5	50%	18%	4.9	0.36	0.38	1.9
DAR-014-05	"Cityview" Sliding Window - Single Glazed	6.38CP Gn	3.5	2.5	51%	18%	4.9	0.35	0.46	1.9
DAR-014-06	"Cityview" Sliding Window - Single Glazed	6.38CP Gy	3.5	2.5	51%	17%	4.9	0.35	0.25	1.9
DAR-014-07	"Cityview" Sliding Window - Single Glazed	6EcAdGy	3.5	2	54%	12%	5.1	0.29	0.21	1.9
DAR-014-08	"Cityview" Sliding Window - Single Glazed	6SE	3	2.5	49%	18%	5	0.37	0.39	1.9
DAR-014-09	"Cityview" Sliding Window - Single Glazed	6SEGy	4	2	57%	11%	5	0.26	0.2	1.9
DAR-014-10	"Cityview" Sliding Window - Single Glazed	6.38CPClr	2.5	3	42%	24%	5	0.48	0.54	1.9
DAR-014-11	"Cityview" Sliding Window - Single Glazed	6EcAdClr	2.5	2.5	43%	20%	5.1	0.44	0.44	1.9
DAR-014-12	"Cityview" Sliding Window - Single Glazed	10.38GyLam	2.5	1.5	41%	5%	6.1	0.41	0.27	1.9
DAR-014-13	"Cityview" Sliding Window - Single Glazed	10.38CPClr	2.5		44%	23%	4.9	0.45	0.52	1.9
DAR-014-14	"Cityview" Sliding Window - Single Glazed	10.38CPGy	3.5	2.5	52%	17%	4.9	0.33	0.25	1.9
DAR-014-15	"Cityview" Sliding Window - Single Glazed	10.38CPNtl	3.5	2.5	50%	18%	4.9	0.35	0.4	1.9
DAR-014-16	"Cityview" Sliding Window - Single Glazed	10.38CPGn	3.5	2.5	53%	15%	4.9	0.31	0.42	1.9
DAR-014-17	"Cityview" Sliding Window - Single Glazed	6.38CPClr	2.5	3	42%	23%	5	0.47	0.54	1.9
DAR-014-18	"Cityview" Sliding Window - Single Glazed	6AzTS21	4	0	55%	-3%	5.8	0.22	0.1	1.9
DAR-014-19	"Cityview" Sliding Window - Single Glazed	6EVBG	3.5	2	51%	13%	5.1	0.33	0.37	1.9
DAR-014-20	"Cityview" Sliding Window - Single Glazed	6EVAB	3.5	2	55%	10%	5.1	0.27	0.25	1.9
DAR-014-21	"Cityview" Sliding Window - Single Glazed	6EVSpGn	3.5	2	55%	10%	5.2	0.27	0.32	1.9
DAR-014-22	"Cityview" Sliding Window - Single Glazed	6SpGy	3	0	50%	-7%	6.4	0.26	0.06	1.9
DAR-015-01	"Cityview" Sliding Window - Double Glazed	4Clr/8/4Clr	2.5	3.5	41%	32%	4.5	0.52	0.53	1.9
DAR-015-02	"Cityview" Sliding Window - Double Glazed	4LE/8/4Clr	3	3.5	48%	33%	4.1	0.45	0.49	1.9
DAR-015-03	"Cityview" Sliding Window - Double Glazed	4InsClr/8/4Clr	3	4	46%	35%	4.1	0.48	0.49	1.9
DAR-015-04	"Cityview" Sliding Window - Double Glazed	5EG/6/4Clr	3.5	2.5	53%	21%	4.6	0.34	0.43	1.9
DAR-015-05	"Cityview" Sliding Window - Double Glazed	5EG/6/4LE	4	3	57%	23%	4.2	0.3	0.4	1.9
DAR-015-06	"Cityview" Sliding Window - Double Glazed	6TS21/6/4Clr	5	2	65%	11%	4.5	0.17	0.11	1.9
DAR-015-07	"Cityview" Sliding Window - Double Glazed	6TS21/6/4LE	5	2	68%	13%	4.2	0.15	0.1	1.9
DAR-015-08	"Cityview" Sliding Window - Double Glazed	6EvanGy/6/4Clr	4	2.5	60%	20%	4.3	0.26	0.19	1.9
DAR-015-09	"Cityview" Sliding Window - Double Glazed	4Clr/6/4ET	3	3	46%	35%	4.1	0.48	0.49	1.9
DAR-015-10	"Cityview" Sliding Window - Double Glazed	6TS21/6/4ET	5	2	66%	13%	4.3	0.17	0.12	1.9
DAR-015-11	"Cityview" Sliding Window - Double Glazed	4FGI Mat/8Ar/6FGI OE Prv	3.5	4	51%	37%	3.7	0.43	0.53	1.9
DAR-015-12	"Cityview" Sliding Window - Double Glazed	4FGI Env Clr/8Ar/4FGI OE Clr	3.5	4	52%	36%	3.7	0.42	0.53	1.9
DAR-015-13	"Cityview" Sliding Window - Double Glazed	4FGI Env Gy /8Ar/4FGI OE Gy	4	3.5	60%	29%	3.7	0.31	0.33	1.9

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Access Via Darley Portal

image presents CityView SlidingWindow LandscapeFlyer_2Sep22-Cover

Download Product Flyer

Download CityView™ Brochure

Design Features

Accepts glass thickness from 6mm to 20mm
Open and closed sill versions
Unique design results in minimal tooling required

Maximum panel weight is 100kg
A number of screening options available
Pre-punched weep holes in sill

Compatible with other Darley Aluminium Commercial Systems
Tested and Approved by an independent NATA accredited laboratory

Specifications

System	Maximum weight per panel	Maximum hieight	Maxiumim Width	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
Closed Sill*	100kg	1900mm	1300mm	6mm to 20mm	AZT0050.14	450	2,500	5,000
Open Sill*	100kg	1900mm	1300mm	6mm to 20mm	AZT0306.15	600	2,700	3,700
*Performance ratings reflect a specific size and configuration. Test report data may not cover all configurations and sizes.
