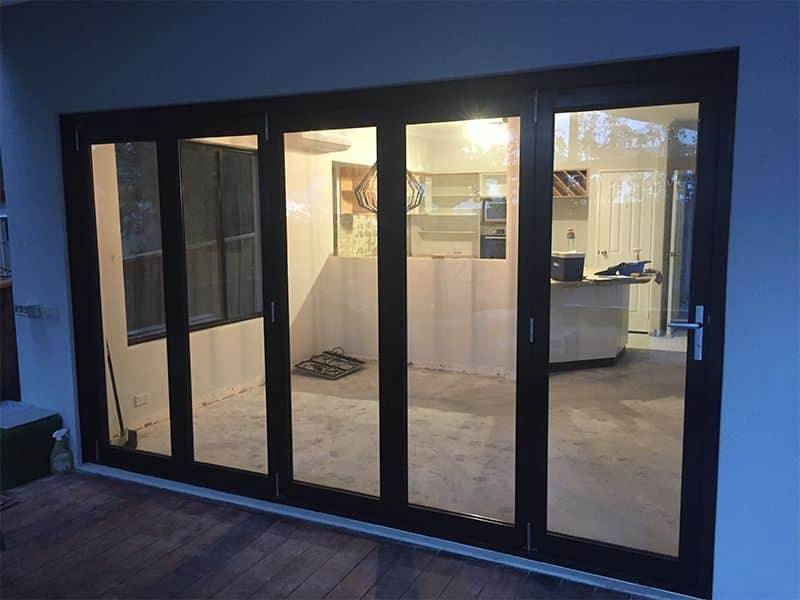

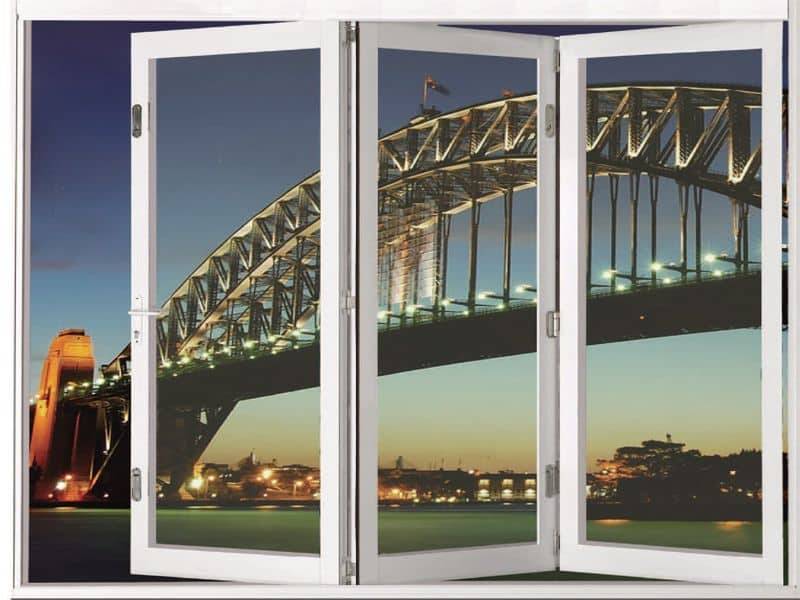

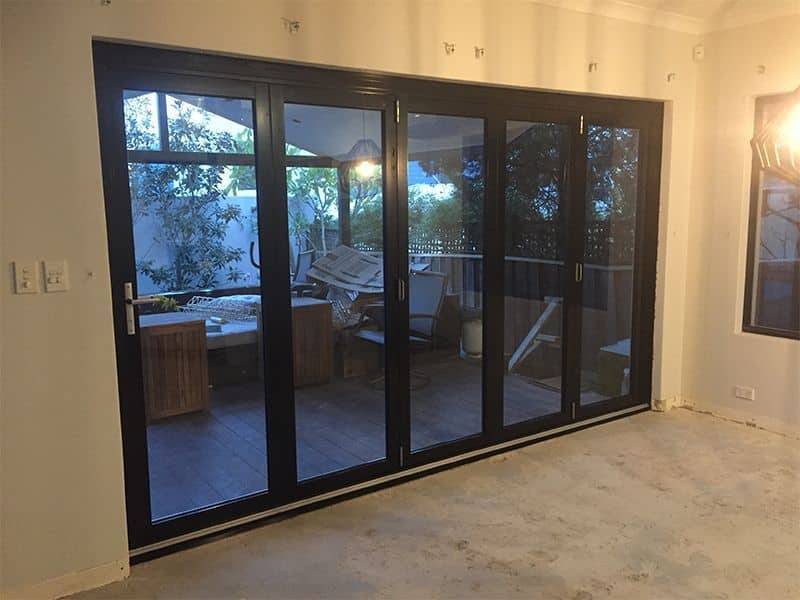

HarbourView Top Rolling Multi-Fold Door

Darley’s HarbourView Top Rolling Multi-Fold Door System is the ideal choice for modern architectural requirements, meeting current design trends as well as performance specifications.





HarbourView Top Rolling Multi-Fold Door

The system is ideally suited for shopping centres, offices, showrooms, and commercial buildings. It is also widely used in high end residential developments and apartments.

As with all of the HarbourView systems, the top rolling multi-fold door has been tested and exceeds Australian Standard AS2047.

Window ID	System	Glazing	Cooling Stars	Heating Stars	Cool %	Heat %	Uw	SHGC	Tvw	Air Inf
DAR-010-01	Harbourview Bi-Fold Door - Single Glazed	6Clr	1.5	2.5	29%	16%	6	0.57	0.6	0.33
DAR-010-02	Harbourview Bi-Fold Door - Single Glazed	6Gry	2.5	2	42%	8%	6	0.4	0.3	0.33
DAR-010-03	Harbourview Bi-Fold Door - Single Glazed	6TS21	4	1.5	57%	5%	5.4	0.22	0.14	0.33
DAR-010-04	Harbourview Bi-Fold Door - Single Glazed	6.38CPNtl	3.5	3	52%	25%	4.5	0.36	0.4	0.33
DAR-010-05	Harbourview Bi-Fold Door - Single Glazed	6.38CPGrn	3.5	3	53%	24%	4.5	0.35	0.48	0.33
DAR-010-06	Harbourview Bi-Fold Door - Single Glazed	6.38CPGry	3.5	3	53%	24%	4.5	0.35	0.26	0.33
DAR-010-07	Harbourview Bi-Fold Door - Single Glazed	6EcAdGy	4	2.5	56%	18%	4.7	0.29	0.21	0.33
DAR-010-08	Harbourview Bi-Fold Door - Single Glazed	6SE	3.5	3	51%	25%	4.6	0.37	0.4	0.33
DAR-010-09	Harbourview Bi-Fold Door - Single Glazed	6SEGy	4	2.5	59%	18%	4.6	0.26	0.2	0.33
DAR-010-10	Harbourview Bi-Fold Door - Single Glazed	10.38CPNeutral	3.5	3	53%	24%	4.5	0.36	0.42	0.33
DAR-010-11	Harbourview Bi-Fold Door - Single Glazed	10.38CPGy	3.5	3	54%	23%	4.5	0.33	0.26	0.33
DAR-010-12	Harbourview Bi-Fold Door - Single Glazed	10.38CPClr	3	3.5	46%	30%	4.5	0.45	0.54	0.33
DAR-010-13	Harbourview Bi-Fold Door - Single Glazed	10.38CPGn	4	3	56%	22%	4.5	0.31	0.44	0.33
DAR-010-14	Harbourview Bi-Fold Door - Single Glazed	6.38CPClr	2.5	3.5	44%	31%	4.6	0.48	0.55	0.33
DAR-010-15	Harbourview Bi-Fold Door - Single Glazed	6AzTS21	4	1.5	58%	4%	5.4	0.21	0.1	0.33
DAR-010-16	Harbourview Bi-Fold Door - Single Glazed	6EVBrz	3.5	2.5	54%	20%	4.7	0.32	0.25	0.33
DAR-010-17	Harbourview Bi-Fold Door - Single Glazed	6EVGy	4	2.5	56%	19%	4.7	0.3	0.22	0.33
DAR-010-18	Harbourview Bi-Fold Door - Single Glazed	6AB	3	1.5	44%	6%	6	0.37	0.35	0.33
DAR-010-19	Harbourview Bi-Fold Door - Single Glazed	6SpGn	2.5	1.5	44%	6%	6	0.37	0.45	0.33
DAR-010-20	Harbourview Bi-Fold Door - Single Glazed	6SpGy	3.5	0	52%	-1%	6	0.26	0.06	0.33
DAR-010-21	Harbourview Bi-Fold Door - Single Glazed	6EVBGn	3.5	2.5	54%	20%	4.7	0.32	0.38	0.33
DAR-010-22	Harbourview Bi-Fold Door - Single Glazed	6EVAB	4	2.5	58%	16%	4.7	0.26	0.26	0.33
DAR-047-01	Harbourview Bi-fold Door - Double Glazed	6.38CPClr/12Ar/6Clr	3.5	4	55%	40%	3.4	0.4	0.49	0.33
DAR-047-02	Harbourview Bi-fold Door - Double Glazed	6Clr/12Ar/6Clr	3	4	47%	37%	4	0.47	0.52	0.33
DAR-047-03	Harbourview Bi-fold Door - Double Glazed	6Gy/12Ar/6Clr	4	3	59%	28%	4	0.3	0.24	0.33
DAR-047-04	Harbourview Bi-fold Door - Double Glazed	6ET/12Ar/6Clr	3.5	4	54%	40%	3.4	0.41	0.48	0.33
DAR-047-05	Harbourview Bi-fold Door - Double Glazed	6EVanClr/12Ar/6Clr	4	4	56%	38%	3.5	0.38	0.41	0.33
DAR-047-06	Harbourview Bi-fold Door - Double Glazed	6EVanGy/12Ar/6Clr	5	3.5	66%	29%	3.5	0.22	0.19	0.33
DAR-047-07	Harbourview Bi-fold Door - Double Glazed	6PTech/12Ar/6Clr	5	3.5	68%	31%	3.2	0.22	0.45	0.33
DAR-047-08	Harbourview Bi-fold Door - Double Glazed	6SnClr/12Ar/6Clr	4	3.5	58%	35%	3.6	0.34	0.4	0.33

WERS Ratings

The Window Energy Rating Scheme (WERS) is accredited by the AFRC – which means that WERS ratings are compliant with the NCC.

Reports are prescribed both the window performance for total window U Value (Uw) and total window Solar Heat Gain Coefficient (SHGCw).

U-value

U-value measures how well a product prevents heat from escaping.

It is a measure of the rate of non-solar heat loss or gain through a material or assembly.

U-value ratings generally fall between 2.0-10.0 W/m2.K for Australian products. The lower the U-value, the greater a window’s resistance to heat and cold flow and the better its insulating value.

Solar Heat Gain Co-efficient (SHGC)

SHGC measures how well a product blocks heat caused by sunlight. SHGC is expressed as a number between 0 and 1. The lower a window’s SHGC, the less solar heat it transmits.

Access Via Darley Portal

Design Features

25 customizable door configuration
Can be configured to suit outward or inward opening doors
Easy care aluminium framing available in an extensive range of finishes
Accepts glass thickness from 6mm to 28mm

Concealed bottom channel for improved weatherproofing and enhanced appearances
Multiple choice of heads and sill available
Removable head track gives easy access if future maintenance is required

Head track suits both 50kg and 100kg hardware
Tested and approved by an independent NATA accredited laboratory
Fits with other Darley commercial 101.6 sections

Specifications

System	Maximum weight per panel	Maximum hieight	Maxiumim Width	Glass Thickness	Test Report No.	Water Rating (Pa)	Structural (Pa)	Ultimate (Pa)
HarbourView Top Rolling Multifold Door	75kg	2700mm	1000mm	6mm to 28mm	48.06	450	1000	1500
